Product Description

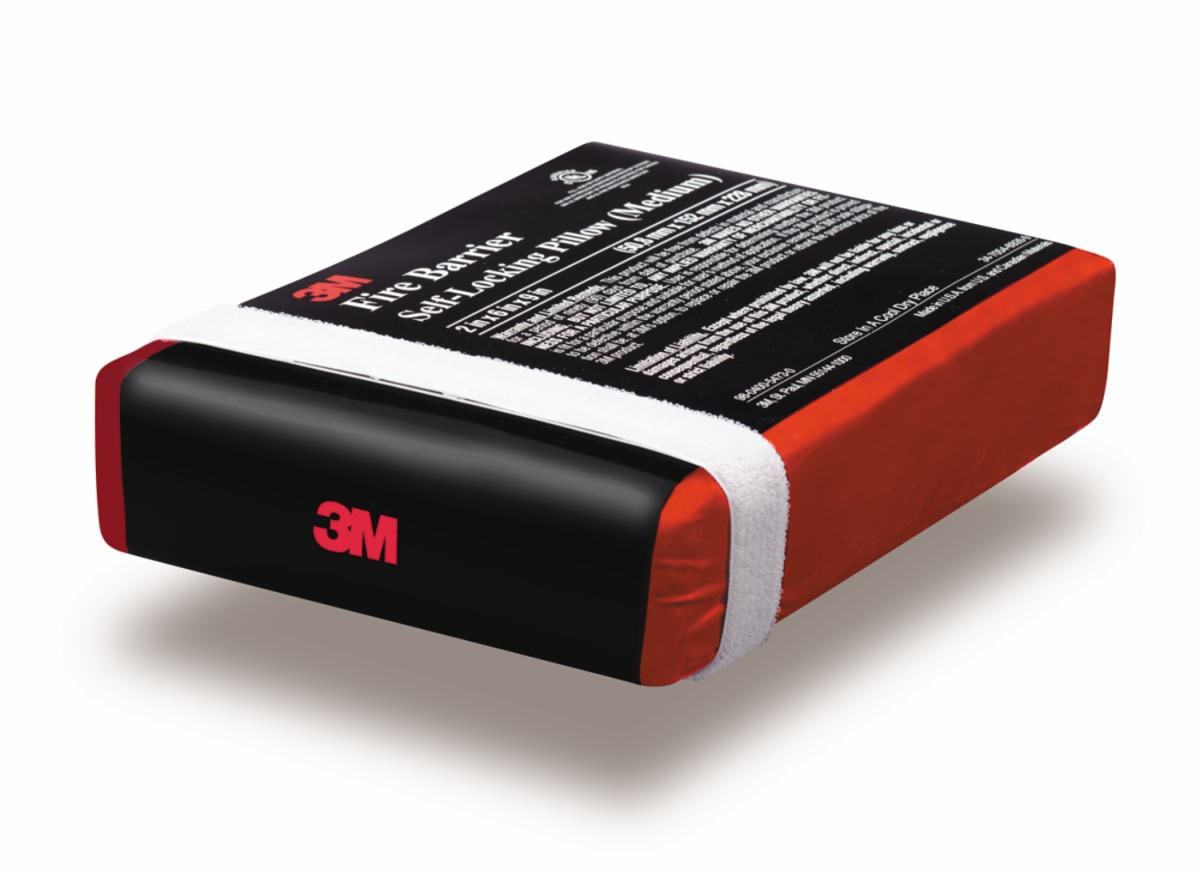

Fire Barrier Self-Locking Pillows FB269SL
- Available in multiple sizes and can be cut in the field for precise fill and compression
- Easy to install, remove and reconfigure to help save time and labor
- Firestop tested for up to 3 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC-S115
- Interlocking strips let installers quickly lock pillows together by hand for fast, accurate firestops
- Intumescent pillows are designed to expand and lock together for tight seal against flame, smoke and toxic gasses
- No wire mesh or additional support required
Simply a Better Way to Firestop Presenting a simpler solution to the time, cost and material challenges of firestopping medium and large through penetration openings: the 3M Fire Barrier Self Locking Pillows combine intumescent fire-rated material and a range of sizes with interlocking strips that allow installers to easily lock multiple pillows together without tools. Installers can also cut and reseal the pillows in the field. This makes it easier to assemble ideally-sized firestops for specific penetrations in floors and walls, installed to the correct compressions for maximum effectiveness in new construction or retrofit applications. No wire mesh, steel cover plates or other additional support is required.
The pillows are fully re-enterable and reusable – the interlocking strips can be released by hand, making it easy to reconfigure firestop pillows as additional services are added or relocated.
Recommended Applications • Firestopping medium to large openings containing power or communication cables and conduits • Gypsum wall, concrete or block wall and concrete floors • Blank openings up to 540 sq. in. (3483 sq. cm) • 1 or 2 cable racks or trays per penetration • Conduit bank, inner duct cable and cable racks or tray applications • Can be used in conjunction with 3M Moldable Putty+ Fully Tested and Approved These intumescent, graphite-free 3M Fire Barrier Self Locking Pillows are designed to expand during a fire, locking themselves into place to protect vital components and forming a tight seal against the spread of flame, smoke and toxic gasses.
They are firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC-S115 when installed in listed systems. The Science of Better Fire Protection from 3M Since 1925 when one of the lab assistants invented masking tape, 3M has been applying science to life -developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of the adhesives, sealants, protective coatings and firestop systems like 3M Fire Barrier Self-Locking Pillows – to improve performance, and to help businesses like yours operate faster, better and more efficiently.
For more information about Fire Barrier Self-Locking Pillows FB269SL, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 12.5 lbs |
| Brand | |
| Minimum Concrete Thickness | 2.5 in |
| Length | |
| Width | |
| Application | Commercial Construction |
| Fire Rating | Up to 3 hr |
| Overall Thickness (Imperial) | 2 in |
| Product Color | Red |
| Product Form | Pillow |
| Product Type | Pillow |
| Smoke Seal | Yes |
| Water-tight | No |
| Dimensions | 16.8 × 12.8 × 9.9 in |
