Product Description

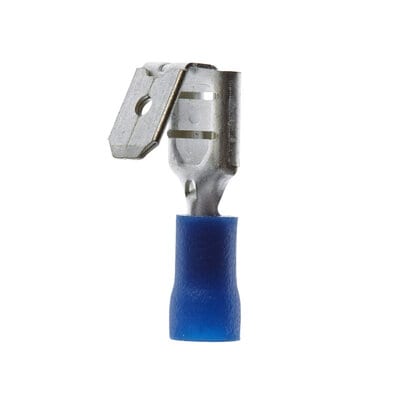

Scotchlok Piggy-back Disconnect Male Female Nyl…
- Accommodates wire sizes 16 to 14 AWG
- Connects a male or female counterpart
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Mates with 0.25-in wide male and female tab
- Nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
- Rated 300V for building wire
- RoHS 2011/65/EU Compliant
- The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Nylon Insulated with Insulation Grip Piggy-Back Disconnect terminal provides permanent electrical and mechanical connection to a pre-stripped end of a stranded copper wire. It is rated 300V for building wire. The terminal has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The nylon-sleeve insulation is abrasion-resistant and flared to ensure a positive grip. This terminal withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). RoHS 2011/65/EU Compliant.
For more information about Scotchlok Piggy-back Disconnect Male Female Nylon Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 1.192 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.25 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.5 mm² |
| Barrel Inside Diameter | 0.09 Inch |
| Barrel Length (Imperial) | 0.23 Inch |
| Barrel Style | Insulation Grip |
| Disconnect Type | Female|Male |
| Fastener Orientation | Male-Female |
| Insulation Material | Nylon |
| Mates with Female Width | 0.250 Inch |
| Mates with Male Tab Width (W') | 0.250 Inch |
| pa_maximum-insulation-outer-diameter-imperial | |
| Overall Length (Imperial) | 0.91 in |
| Pad Width | 0.25 in |
| Tab Width | 0.250 |
| Terminal Style | Piggy-back |
| Terminal Type | Disconnect |
| Units Per Case | |
| Dimensions | 9.4 × 3.6 × 5.1 in |
