Product Description

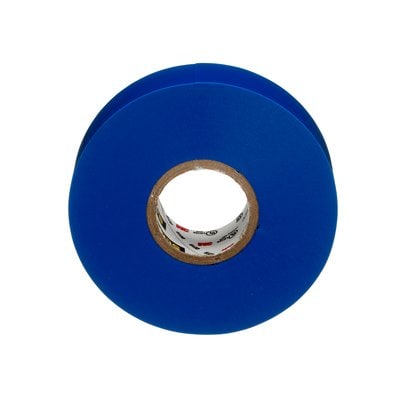

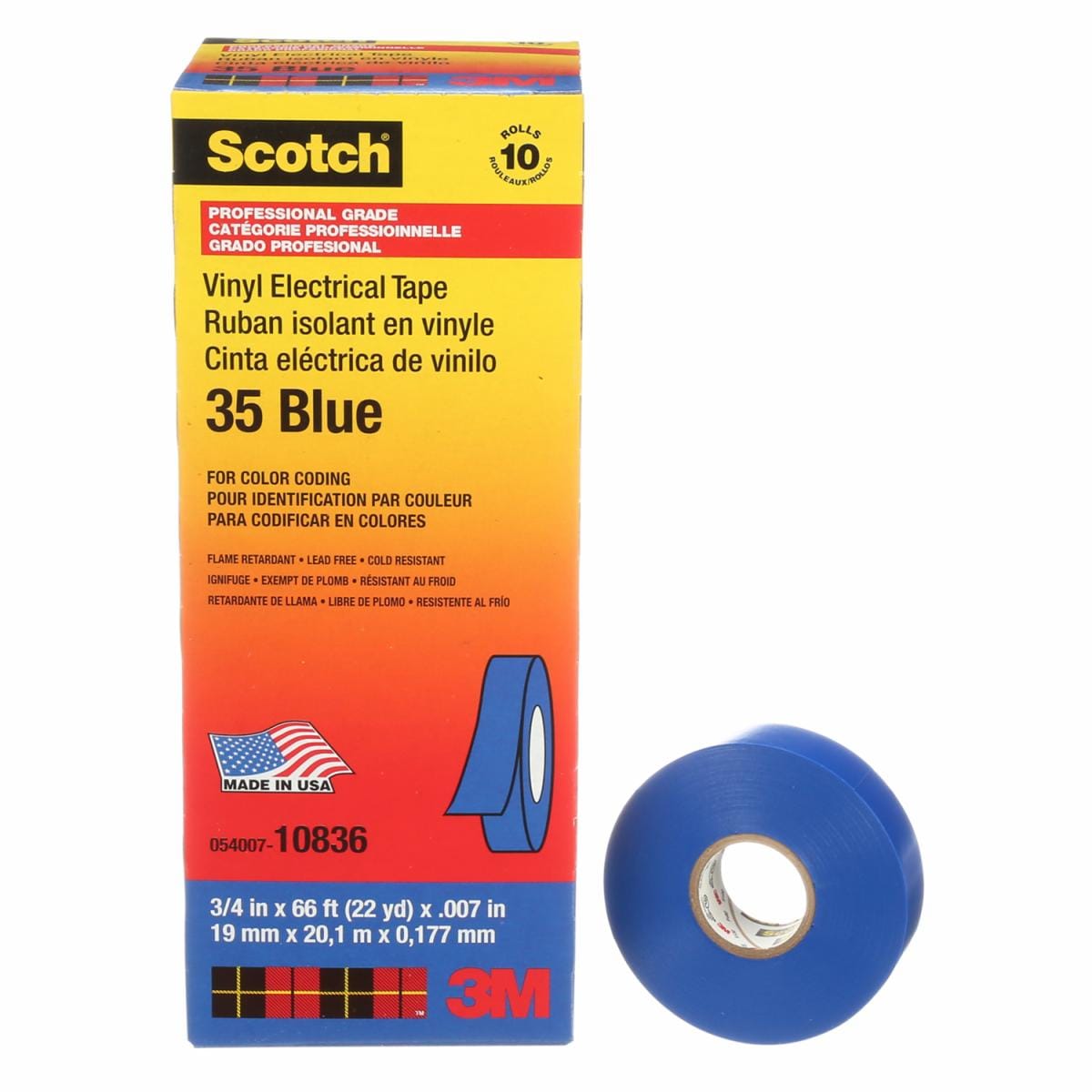

Scotch Vinyl Color Coding Electrical Tape 35
- BUILT STRONG: Engineered with a pressure-sensitive, rubber-resin adhesive and flexible PVC backing, for excellent, long-lasting electrical and mechanical protection
- ENDURES THE ELEMENTS: Protects in challenging environments, making it a reliable solution for long-lasting performance
- ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
- HIGHLY COMPATIBLE: Works with synthetic cable insulations, jackets, and splicing compounds
- MULTI-PURPOSE: Excels in wire and phase identification, motor lead color coding, piping system organization, cable jacket repair, and safety zone marking

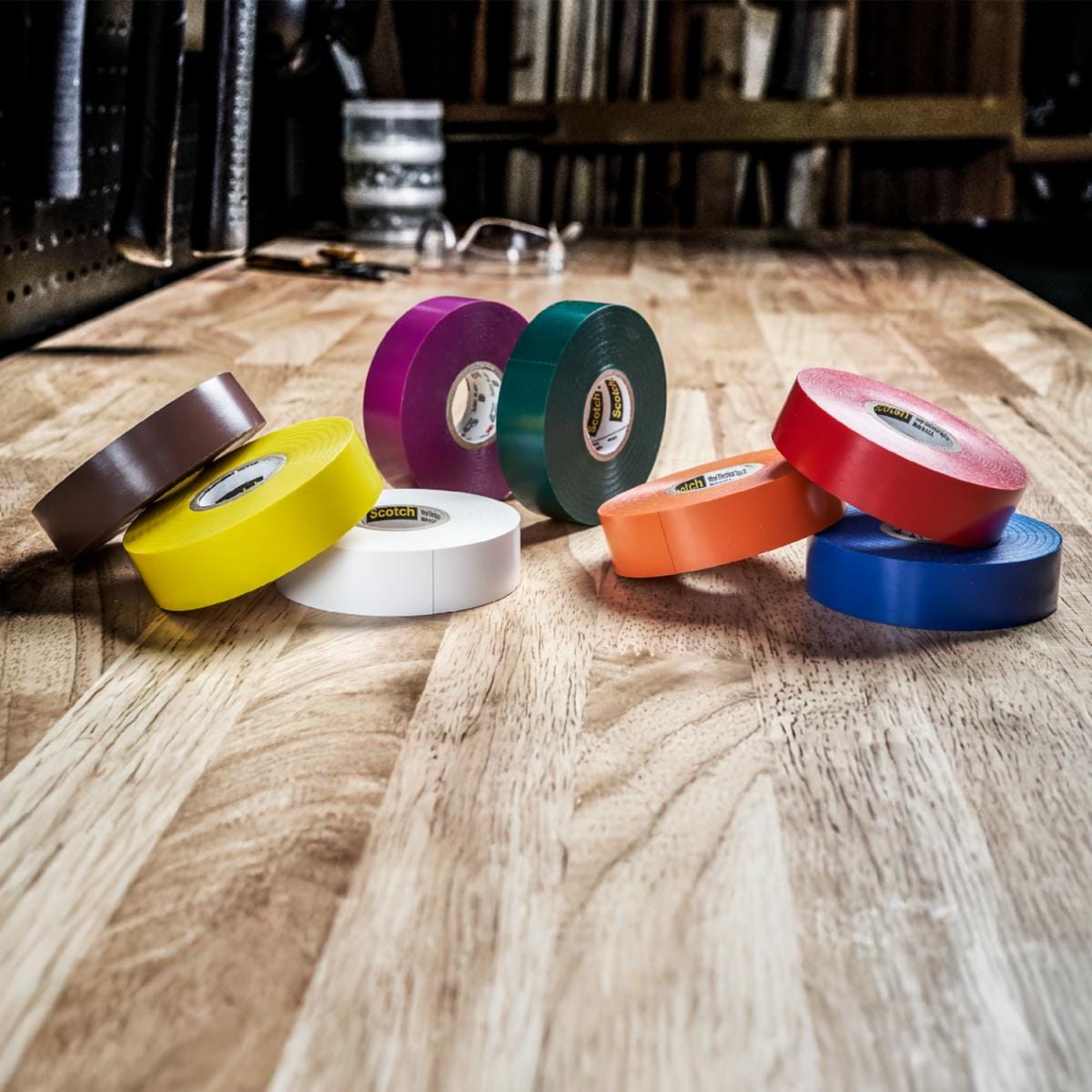

- PRODUCT OPTIONS: Available in ten fade-resistant colors, including blue, brown, gray, green, orange, pink, red, violet, white (white offers full UV-resistance), and yellow
- RELIABLE PERFORMANCE: Provides primary electrical insulation for splices up to 600V in demanding indoor and weather-protected environments
- SPECIFICATIONS: Meets the standard for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462
- Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, compliant with IEC 60454-3-1-7/F-PVCP/90, and RoHS and is flame retardant, sunlight (white only), cold resistant per (UL510) standards
- TEMPERATURE-RESISTANT: Performs within temperatures from 14 °F to 221 °F (-10 °C to 105 °C)
Scotch Vinyl Color Coding Electrical Tape 35 and the other products in this family are designed to address the daily challenges customers face in the industry. Through innovation and rigorous testing, 3M is committed to delivering high-performance products that help customers enhance application efficiency and effectiveness, featuring aggressive backings and adhesives designed to withstand challenging temperatures and environments where moisture may be present. For best application practices, apply in half-lapped layers with enough tension to create a uniform wrap. For most applications, this tension will reduce the tape width to approximately 5/8 of its original size. When taping pigtail splices, wrap the tape beyond the ends of the wires and then fold it back to provide a protective cushion against cut-through.
For the final wrap, apply the tape without tension to help prevent flagging. Discover how Scotch Vinyl Color Coding Electrical Tape 35 can enhance the performance of your electrical applications.
For more information about Scotch Vinyl Color Coding Electrical Tape 35, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 25 lbs |
| Brand | |
| Width | |
| Tensile Strength | |
| Adhesive Type | |
| Application | Electrical Maintenance, Insulation |
| pa_backing-carrier-thickness-metric | |
| Case Quantity | 100 Rolls |
| Dielectric Strength | |
| Electrolytic Corrosion Factor | 0.9 |
| Flame Retardant | |
| Insulation Resistance | > 10^6 megohms |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_minimum-operating-temperature-celsius | |
| pa_minimum-operating-temperature-fahrenheit | |
| Overall Length (Imperial) | 66 ft |
| Product Color | Blue |
| Rolls per Carton | 10 |
| Rolls per Case | 100 |
| Shelf Life | |
| Specifications Met | CSA Certified, VDE Marks License, IEC 60454-3-1-6/F-PVC P/90, UL Listed, RoHS 2011/65/EU, VDE 0340-TEIL1 |
| Tape Grade | |
| UV Resistant | Yes |
| Units Per Case | |
| Voltage Rating | 600 V |
| Dimensions | 18.8 × 7.7 × 9.7 in |
