Product Description

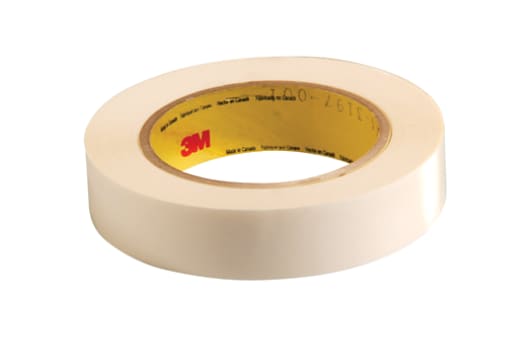

Advantages of 3M™ Double Coated Tape 444PC
- Excellent for foam and gasket attachment, HSE and LSE plastics such as polyethylene
- Quick flowing adhesive delivers high initial adhesion for faster lamination
- 0.5 mil PET film carrier adds dimensional stability and easier handling during slitting and die-cutting
- 3M™ Adhesive 300 aggressively bonds to many surfaces, including plastics like polyethylene
- 58# 4.2 mil Heavy polycoated kraft (PCK) liner provides moisture stability for large part converting
3M™ Double Coated Tape 444PC features a medium-firm acrylic adhesive with good solvent resistance, ideal for joining materials that are relatively smooth, thin and have low residual stress. It provides excellent adhesion for plastics and polyethylene in demanding production environments. A thin, tough, polyester film carrier between the adhesive layers improves tape handling and strength.
Aggressively Bonds to Many Surfaces, including Plastics
Featuring 3M™ High Strength Acrylic Adhesive 300, the 3M™ Double Coated Tape 444PC is formulated to create effective bonds to low surface energy (LSE) substrates, powder coated paints and oily metals. It features a thin, clear .5 mil polyester film (PET) carrier on a tan, 58# polycoated kraft (PC) paper liner that provides moisture stability for large part converting.
About Our 3M™ Adhesive 300
3M™ Adhesive 300 is a medium-firm acrylic adhesive system featuring both high initial adhesion and good UV and chemical resistance and strong holding power. The design of the adhesive results in high initial adhesion and good temperature performance. The formulation gives 3M™ Adhesive 300 a consistently strong bond across a range of temperatures up to 250°F/121°C short term.
Recommended Applications
- Medical diagnostic test strips
- Plastic film lamination/bonding
- Splicing
- Foam lamination
- Gasket attachment
What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that is removed at the time of application. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in electronics, automotive, aerospace, general industrial and fabrication markets.
Bringing Better Ideas to the Surface through Science
The 3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers like you deliver competitive products to the market faster and more efficiently.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 14.8 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Adhesive Type | |
| Backside Adhesive Type | |
| Backside Adhesive Thickness | 1.4 mil |
| Backing (Carrier) Material | Polyester film |
| Backing (Carrier) Thickness | 0.5 mil |
| Brand | |
| Carrier Material | |
| Carrier Thickness (mils) | |
| Color | |
| Core Size | |
| Face Side Adhesive Thickness | 2 mil |
| Faceside Adhseive Type | |
| Industries | Electronics |
| Length | |
| Make to Order | |
| Maximum Operating Temperature | 121 degrees C |
| Minimum Operating Temperature | -40 degrees C |
| Master Size Length | 98.8 m |
| Master Size Width | |
| Physical Form | |
| Primary Liner | |
| Primary Liner Color | |
| Primary Liner Thicknes (mils) | |
| Shelf Life | |
| Thickness | |
| Total Tape Thickness Without Liner | 3.9 mil |
| Width |
