Product Description

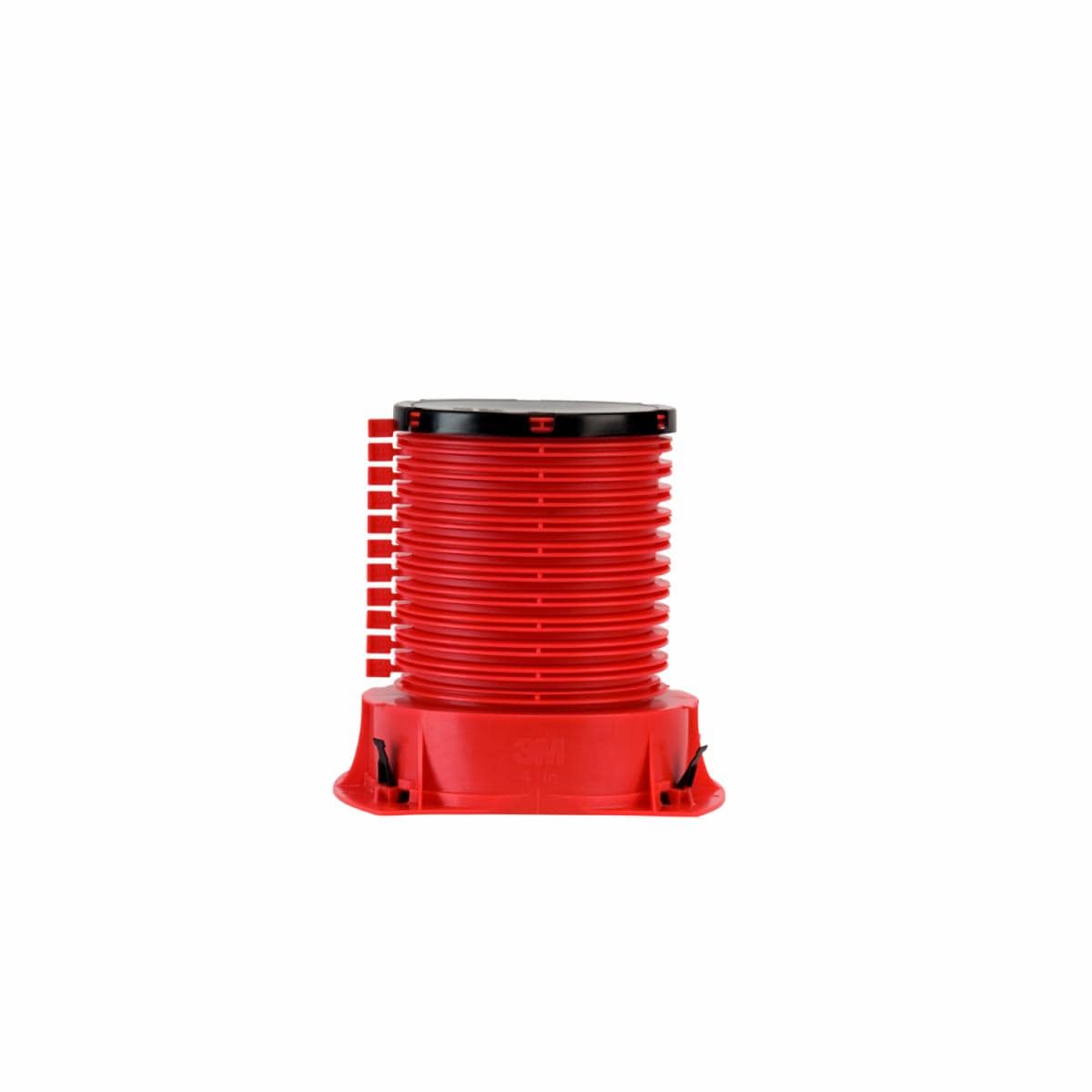

Fire Barrier Cast-in Device 4MCID
- Designed specifically for metal pipes and other metallic through penetrants
- Eliminates time and expense of drilling firestop holes in concrete
- Installs securely by attaching directly to forms and floor decking
- Intumescent devices are firestop tested for up to 3 hours in accordance with ASTM E 814 (UL 1479)
- Rugged one-piece design withstands impact during everyday construction
- Tear strips allow installers to easily adjust height for various concrete thicknesses
Simply a Better Way to Firestop
Firestopping through concrete used to mean three things: pouring the concrete, drilling core holes, and firestopping later. The 3M™ Fire Barrier Cast-In Devices for Metal Pipes eliminate the time and expense of firestopping metallic penetrants using extra materials such as pipe devices, strips and caulk, allowing for secure, permanent firestop installation before slabs are poured. A series of built-in tear strips makes for fast, easy height adjustment: using only a pliers, installers can quickly adjust the height of the device from its maximum 8” (203.2 mm) to as low as 2-1/2" (57.2 mm).
The device secures easily to floor decking, and its one-piece design withstands the everyday impact and wear of the construction site even at floor level. Its black cap, easily visible after pouring, signifies it as a pass-through device for metallic penetrants.
Recommended Applications
- Firestopping of metal pipes – copper, steel, iron, flexible gas
- For concrete thicknesses from 2-1/2” to 8” or higher in conjunction with 3M™ Fire Barrier Cast-In Devices Height Adaptor
- In conjunction with 3M™ Fire Barrier Cast-In Device Metal Deck Adaptor for attaching to fluted decks
Fully Tested and Approved
The intumescent 3M™ Fire Barrier Cast-In Devices for Metal Pipes are firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479). They are UL Classified for 2- and 3-hour fire (F) rating, and 1- and 3-hour temperature (T) rating. They also meet UL Water Leakage Test, W Rating – Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479 (see system details).
The Science of Better Fire Protection from 3M
Since 1925 when one of the lab assistants invented masking tape, 3M has been applying science to life –developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of the adhesives, sealants, protective coatings and devices including 3M™ Fire Barrier Cast-In Devices for Metal Pipes to improve performance, and to help businesses like yours operate faster, better and more efficiently.
For more information about Fire Barrier Cast-in Device 4MCID, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 10.464 lbs |
| Brand | |
| Diameter | |
| Fire Rating | Up to 3 hr |
| Product Color | Red |
| Product Type | Cast-in Device |
| Water-tight | No |
| Dimensions | 22.7 × 13.3 × 8.8 in |
