Product Description

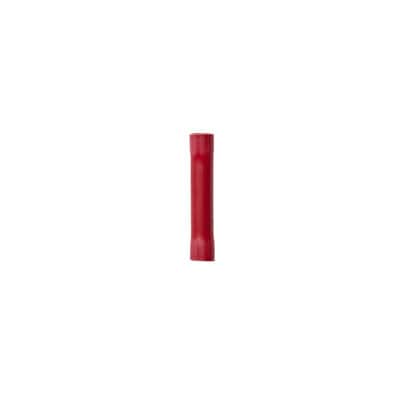

Highland BSV18Q Vinyl-Insulated Butted-Seam Sta…
- 1000/case
- 25/bag
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Accommodates wire sizes 22 to 18 AWG
- Built-in wire stop for correct positioning
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Highland Butt Splice Connector is color-coded for quick and easy identification of the wire size required. The splice has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Highland BSV18Q Vinyl-Insulated Butted-Seam Standard Butt Connector, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 0.83 lbs |
| Brand | |
| Barrel Length | 0.25 Inch |
| Maximum Conductor Size | 1 mm² |
| Minimum Conductor Size | .34 mm² |
| Length | |
| Barrel Inside Diameter | 0.145 Inch |
| Barrel Style | Butted Seam |
| Body Material | Copper Alloy |
| CSA File Number | LR22190 |
| Conductor Sizes (Imperial) | |
| Connector Type | Butt |
| Insulated | Yes |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Material | |
| Max. Number of Cores | 411 |
| pa_maximum-insulation-outer-diameter-metric | |
| pa_maximum-insulation-outside-diameter | |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_maximum-recommended-voltage-rating | |
| Maximum Voltage Rating | 600 to 1000 V |
| pa_operating-temperature-range-celsius | |
| pa_operating-temperature-range-fahrenheit | |
| Terminal Material | Tin-Plated Electrolytic Copper |
| Terminal Style | Standard |
| Terminal Type | Butt Connectors |
| UL File Number | E23438 |
| Units Per Case | |
| Units per bag | 25 |
| Dimensions | 5.7 × 5.3 × 4.3 in |
