Product Description

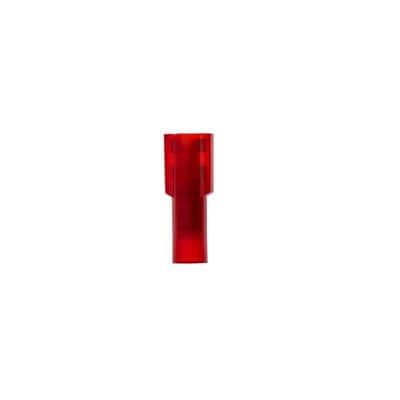

Highland Nylon Fully Insulated Female Disconnec…
- Allows for quick and easy disconnect of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Nylon-insulated, butted-seam barrel offers easy insertion of wires
3M Highland Nylon Fully Insulated Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The butted-seam barrel of this terminal provides electrical contact after crimping. The flared nylon sleeve is abrasion-resistant with a stepped design to ensure mistake-proof crimping. RoHS 2011/65/EU Compliant.
For more information about Highland Nylon Fully Insulated Female Disconnect Terminal FDI18-187Q, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 0.611 lbs |
| Brand | |
| Barrel Length | 0.25 Inch |
| Connection Width | 0.187 in |
| Maximum Conductor Size | 1 mm² |
| pa_maximum-insulation-outer-diameter | |
| Minimum Conductor Size | .34 mm² |
| Diameter | |
| Length | |
| Width | |
| Barrel Inside Diameter | 0.085 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Diameter (D) | 0.23 Inch |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Material | Nylon |
| Material | |
| Mates with Female Width | 0.187 Inch |
| Mates with Male Tab Width (W') | 0.187 Inch |
| Max. Number of Cores | 414 |
| pa_maximum-insulation-outside-diameter | |
| pa_maximum-recommended-voltage-rating | |
| Maximum Voltage Rating | 600 to 1000 V |
| Pad Width | 0.187 in |
| Tab Width | 0.187 |
| Terminal Style | Fully Insulated |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
| Units Per Case | |
| Units per bag | 25 |
| Dimensions | 5.7 × 5.3 × 4.3 in |
