Product Description
Highland Vinyl Insulated Female Disconnect Term…
- Allows for quick and easy disconnect of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

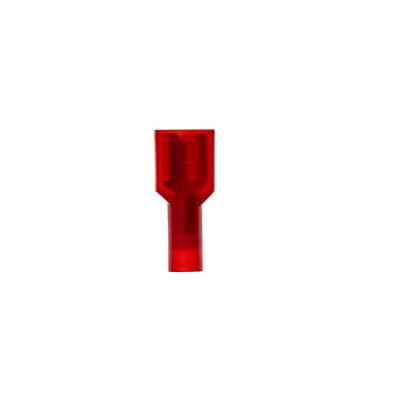

3M Highland Vinyl Insulated Butted Seam Female Disconnect attaches to the mating part with a tongue that slips over the male tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Highland Vinyl Insulated Female Disconnect Terminal FDV10-250Q, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 1.102 lbs |
| Brand | |
| Barrel Length | 0.25 Inch |
| Connection Width | 0.25 in |
| Maximum Conductor Size | 10 AWG |
| pa_maximum-insulation-outer-diameter | |
| Minimum Conductor Size | 12 AWG |
| Length | |
| Barrel Inside Diameter | 0.128 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Material | Vinyl |
| Material | |
| Mates with Female Width | 0.25 Inch |
| Mates with Male Tab Width (W') | 0.25 Inch |
| Max. Number of Cores | 416 |
| pa_maximum-insulation-outside-diameter | |
| pa_maximum-recommended-voltage-rating | |
| Maximum Voltage Rating | 600 to 1000 V |
| Pad Width | 0.25 in |
| Tab Width | 0.250 |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
| Units Per Case | |
| Units per bag | 25 |
| Dimensions | 5.7 × 5.3 × 4.3 in |
