Product Description

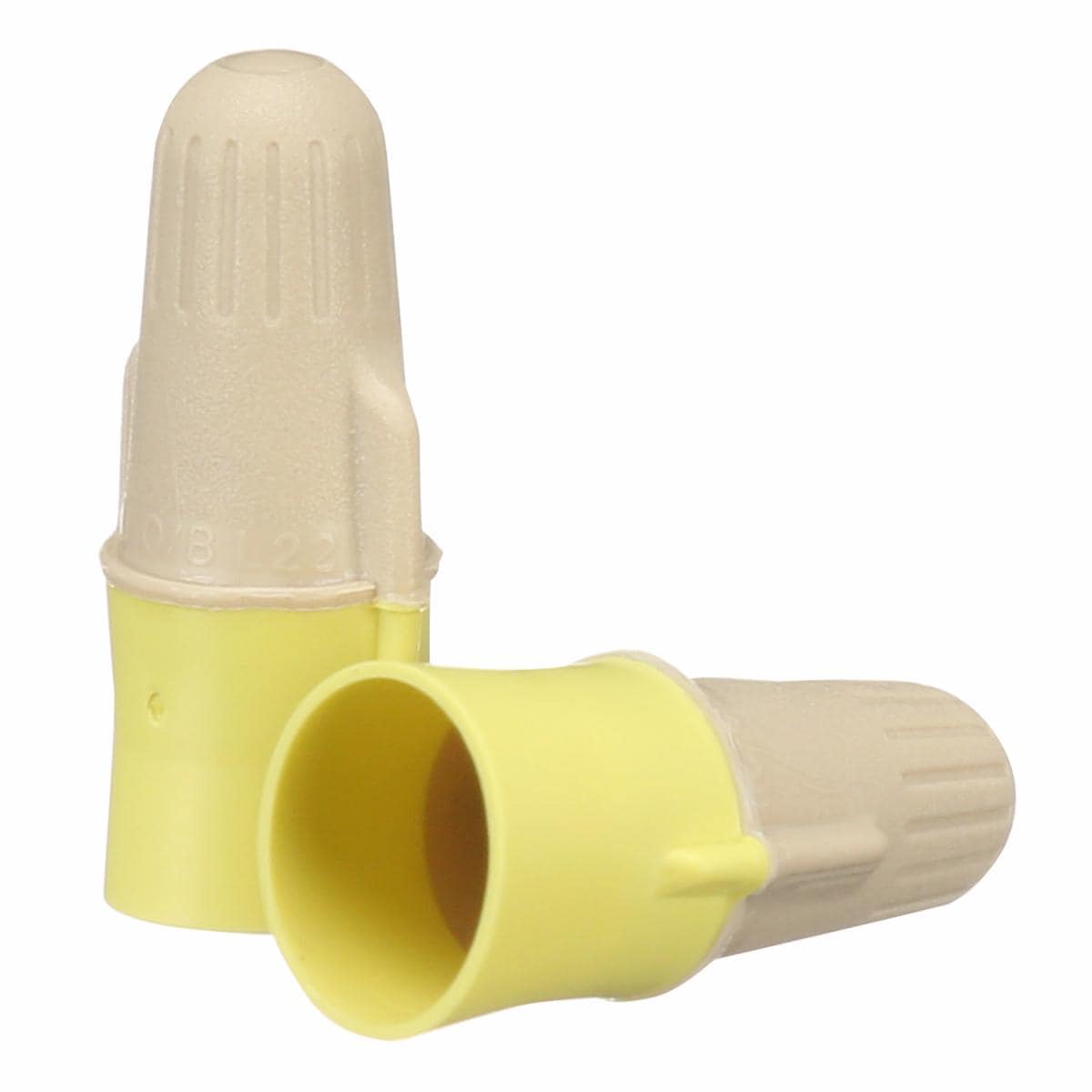

Advantages of 3M™ Performance Plus™ Wire Connector T/Y+JUG
- Strong bite for a secure, reliable connection
- Flexible spring expands for greater wire range and reuse
- Dual color coded: one connector does the job of two traditional connectors in the majority of applications
- UL Listed
3M™ Performance Plus™ Wire Connector T/Y+JUG is designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
3M™ Performance Plus™ Wire Connectors are UL Listed for 600 volts on copper wire. They are available in five color/wire range options: O/B+ (orange/blue) 2 #22 – 3 #12 AWG; T/Y+ (tan/yellow) 2 #22 – 3 #12 AWG; R/Y+ (red/yellow) 2 #18 – 2 #8 AWG; T/R+ (tan/red) 2 #18 – 5 #12 AWG; B/G+ (blue/gray) 4 #14 – 2 #6 AWG.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 1.6 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Brand | |
| Color | |
| Conductor Sizes | 22 – 12 AWG |
| Connection Type | Wire |
| Connector Style | Twist on |
| Flame Retardant | |
| Material | |
| Maximum Conductor Size | 12 AWG |
| Maximum Insulation Outer Diameter | 3.7 mm |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Voltage Rating | 600 V |
| Minimum Conductor Size | 22 AWG |
| Specifications Met | CSA |
| Type | |
| Voltage Rating | 600 V |
| Wire Connector Type | Twist-on wire connector |
