Product Description
Advantages of 3M™ Polyester Film Electrical Tape 1350F-1
- Nominal thickness: 0.064 mm (2.5 mil)
- Printable
- Pressure-sensitive acrylic adhesive with polyester film backing
- UL Recognized flame retardant
- UL Recognized and CSA certified 130°C temperature rating
- 5-year shelf-life when stored per 3M recommended conditions
- RoHS Compliant
3M™ Polyester Film Electrical Tape 1350F-1 tape is a yellow, white, or black, UL recognized flame retardant, 2.5-mil (0.064 mm) thick tape composed of a 1-mil (0.025 mm) polyester film backing coated on one side with a non-corrosive, acrylic pressure-sensitive adhesive.

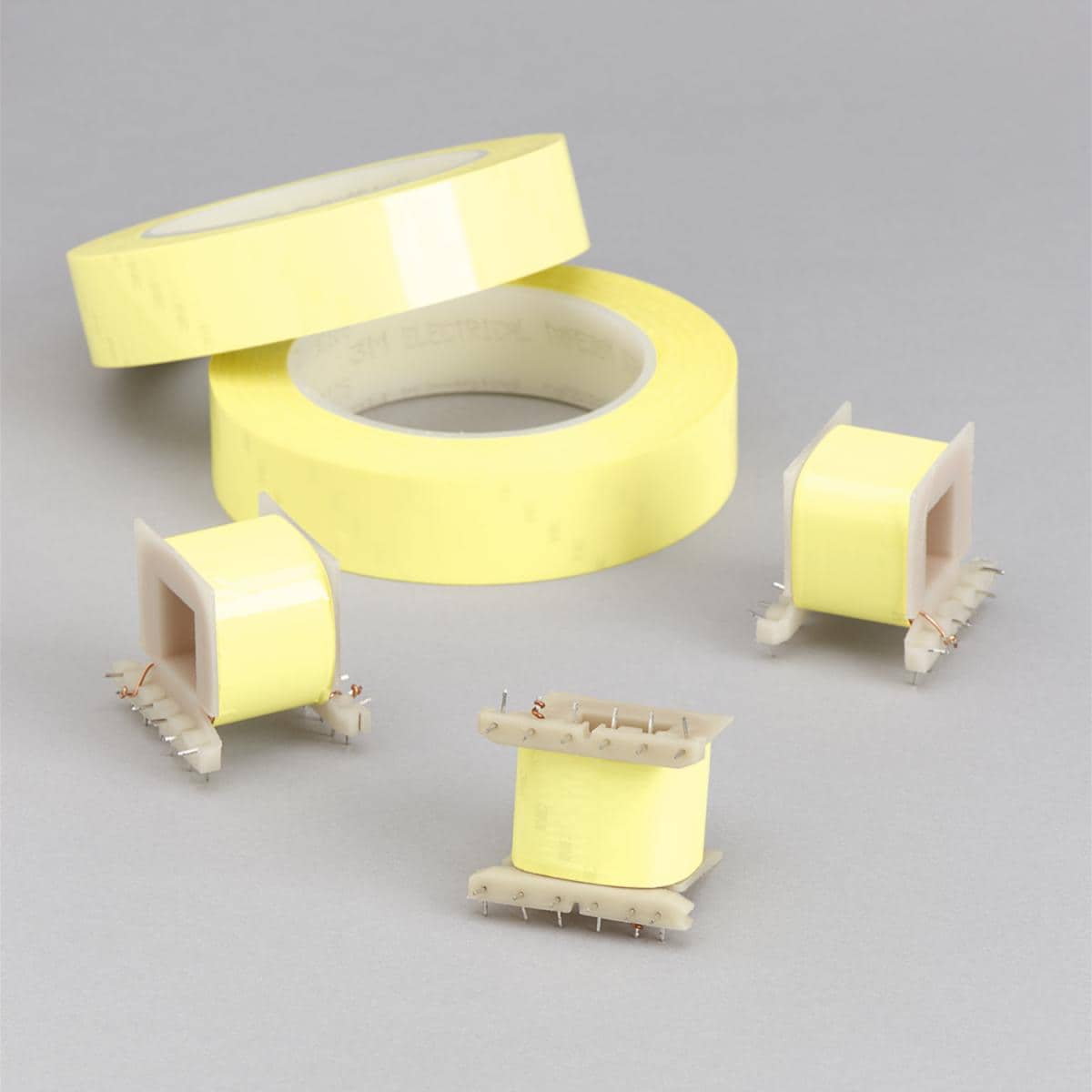

3M™ Polyester Film Electrical Tape 1350F-1 is a polyester film tape that has a flame retardant acrylic adhesive. It is commonly used in wrapping coils, capacitors, wire harnesses, transformers, shaded pole motors and fractional-horsepower motors. UL rated 130°C (266°F) and RoHS Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 9.3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Adhesive Type | |
| Backing Material | |
| Brand | |
| Color | |
| Dielectric Strength | |
| Electrolytic Corrosion Factor | 1.0 |
| Insulation Resistance | > 10^6 megohms |
| Maximum Operating Temperature | 130 degrees C |
| Minimum Operating Temperature | 0 degrees C |
| Overall Length | |
| Overall Width | 24 in |
| Shelf Life | |
| Specifications Met | RoHS 2011/65/EU |
| Total Tape Thickness without Liner | 2.5 mil |
