Product Description
Advantages of 3M™ Polyimide Film Electrical Tape 1205
- Highly conformable with a pressure-sensitive, acrylic adhesive
- Flame-retardant and has polyimide backing
- Suitable for use as wave solder masking tape in a printed circuit board assembly
- Designed for anchoring leads and terminal boards
- Withstands a temperature rating of -40°C to 155°C (-40°F to 311°F)
- UL Listed and RoHS Compliant

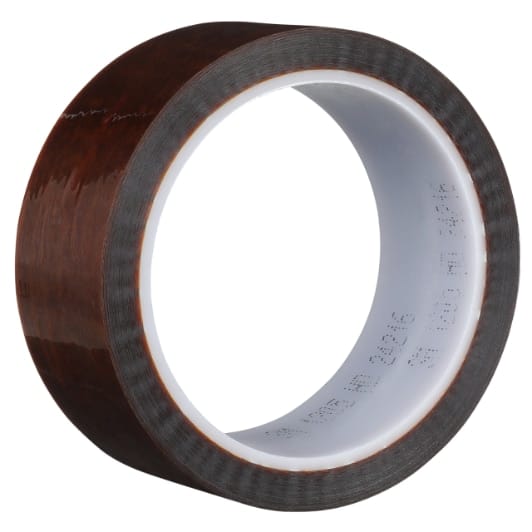

3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame-retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of -40°C to 155°C (-40 to 311 °F) without the loss of electrical properties and tensile strength.
3M™ Polyimide Film Electrical Tape 1205 has a pressure sensitive, acrylic adhesive that offers optimized adherence. This tape is designed for anchoring leads/terminal boards. It is ideal for use as wave solder masking tape in a printed circuit board assembly. This flame-retardant tape is highly resistant to heat and solvents. UL Listed and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Adhesive Material | |
| Adhesive Type | |
| Application | Insulation |
| Backing Material | |
| Brand | |
| Color | |
| Dialectic Strength | 7500 V |
| Electrolytic Corrosion Factor | 1 |
| Elongation at Break | 55% |
| Insulation Resistance | 1 x 10^6 megohms |
| Length | |
| Maximum Operating Temperature | 155 degrees C |
| Minimum Operating Temperature | 0 degrees C |
| Shelf Life | |
| Specifications Met | RoHS 2011/65/EU |
| Tensile Strength | |
| Total Tape Thickness Without Liner | 3.2 mil |
| Width |
