Product Description
Advantages of 3M™ Polyimide Film Electrical Tape 92
- Highly conformable with a pressure-sensitive, acrylic adhesive
- Flame-retardant and has polyamide backing
- Suitable for use as wave solder masking tape in a printed circuit board assembly
- Designed for anchoring leads and terminal boards
- Withstands a temperature rating of 0°C to 180°C
- UL Listed and RoHS Compliant

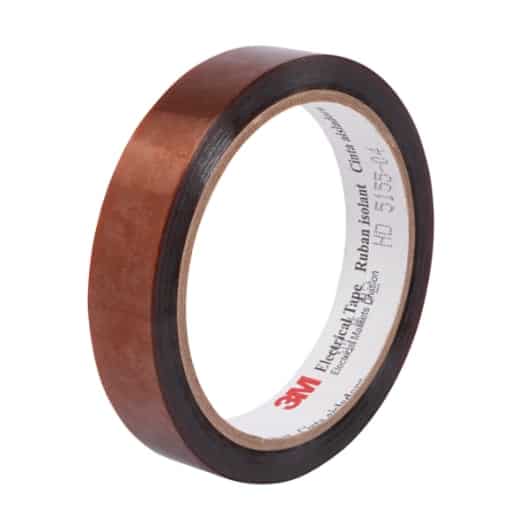

3M™ Polyimide Film Electrical Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame-retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).
3M™ Polyimide Film Electrical Tape 92 is used as a solder masking tape in a printed circuit board assembly. The tape has a smooth and uniform thermosetting silicone adhesive coating that offers good adherence while eliminating bare spots and lumps. UL Listed and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 1.7 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Adhesive Material | |
| Adhesive Type | |
| Application | Insulation |
| Backing Material | |
| Backing Thickness | |
| Brand | |
| Color | |
| Dialectic Strength | 7500 V |
| Electrolytic Corrosion Factor | 1 |
| Elongation at Break | 40% |
| Insulation Resistance | 1 x 10^6 megohms |
| Length | |
| Make to Order | |
| Maximum Operating Temperature | 180 degrees C |
| Minimum Operating Temperature | -40 degrees C |
| Shelf Life | |
| Specifications Met | RoHS 2011/65/EU |
| Tensile Strength | |
| Total Tape Thickness Without Liner | 2.75 mil |
| Width |
