Product Description

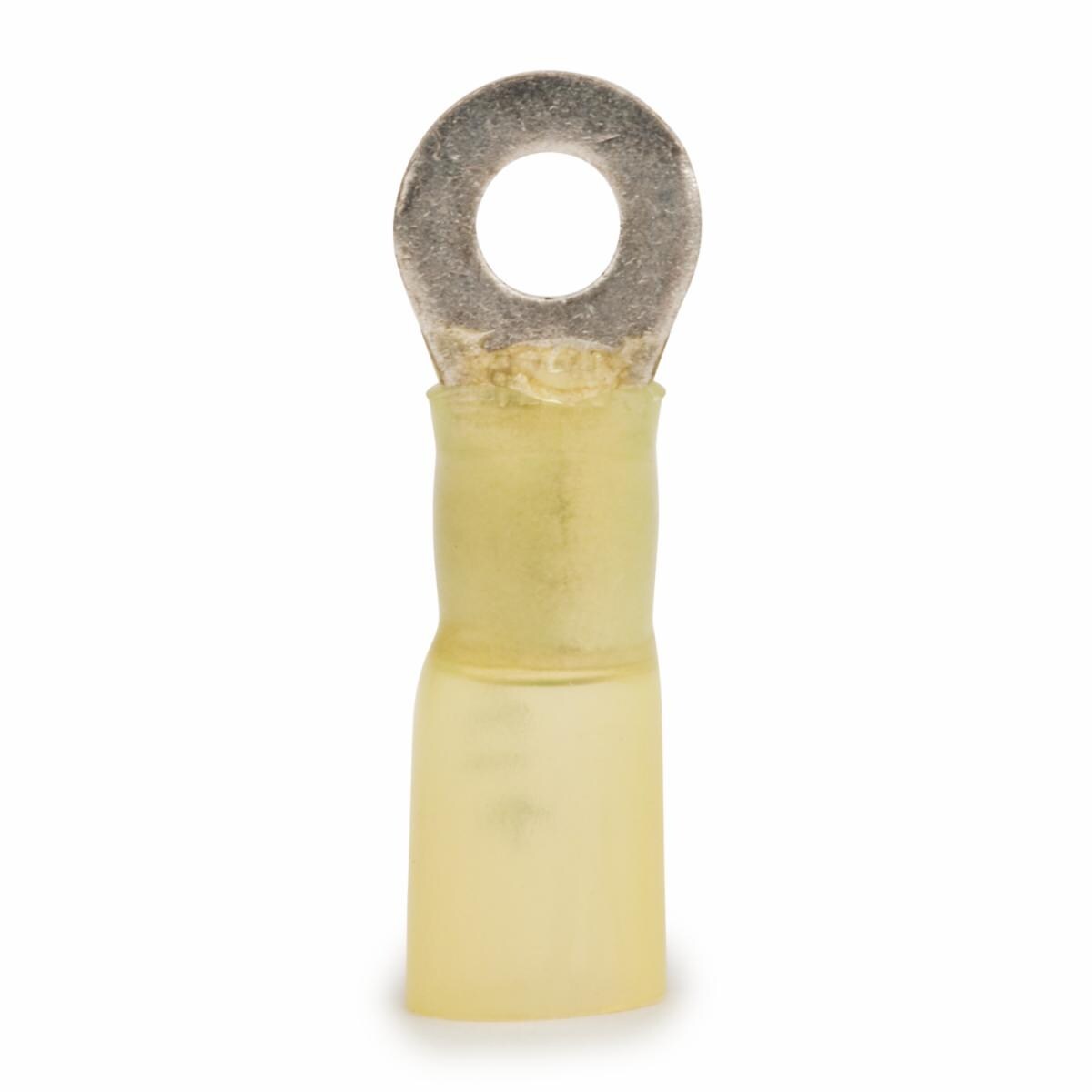

Ring Tongue
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Standard-style ring tongue fits around the stud
- When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
- Withstands a maximum temperature of 221 degrees F (105 degrees C)
3M Scotchlok Heat Shrink Brazed Seam Ring Tongue is color-coded for quick and easy identification of the wire size required. This versatile terminal has a brazed-seam barrel that is covered by a see-through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The Heat Shrink tubing offers better pullout strength and strain relief when shrunk. RoHS 2011/65/EU Compliant.
For more information about Ring Tongue, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 0.108 lbs |
| Brand | |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Minimum Stud Diameter | 0.19 in |
| Connection Type | Crimp |
| Insulation Material | Heat Shrink |
| pa_maximum-operating-temperature-celsius | |
| Terminal Type | Ring |
| Size | |
| Dimensions | 5 × 8.3 × 0.5 in |
