Product Description
Advantages of 3M™ Scotchcast™ Electrical Powder Resin 263
- Has 7 to 15-second gel time at 380 °F (193 °C)

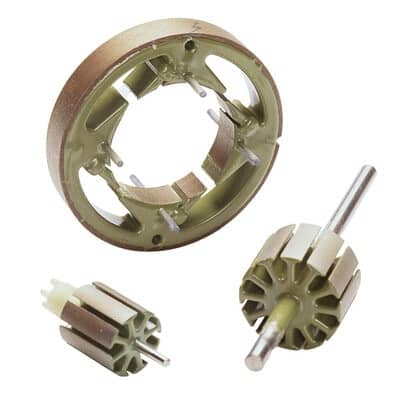

- Useful for moisture-proofing and insulating armatures, stators, buss bars and toroid cores
- Withstands temperatures of 356 °F (180 °C)
- Compatible with electrostatic spray, fluid bed dip and venturi spray
- Heat-, chemical- and moisture-resistant
- UL Listed, EIS Approved and RoHS 2011/65/EU Compliant
3M™ Scotchcast™ Electrical Powder Resin 263 is a 1-part powder resin used for coating flat surfaces, corners and high points. This general-purpose epoxy based, rapid cure resin has a very low viscosity property, making it easy to infuse on any surface. The resin melts when it’s heated, flows to a controlled extent and then cures, bonding to the surface in a continuous, uniform, thick coating.
3M™ Scotchcast™ Electrical Powder Resin 263 has a low gel point rating to ensure a quick curing process. The resin is made from a fusion blend process. It offers the components necessary to provide a complete cure and meet required performance properties. It provides a continuous, tough moisture and chemical resistant dielectric coating to a variety of substrates. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. Its high dielectric strength offers excellent electrical insulating property to the resin, thus making it a ideal insulator for creating a barrier between 2 conductors. UL Listed and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 47 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Applicable by Electrostatic Fluid Bed | No |
| Applicable by Electrostatic Spray | No |
| Applicable by Fluid Bed Dip | Yes |
| Applicable by Venturi Spray | Yes |
| Application | Utilities & Power: Coatings for Insulation |
| Brand | |
| Color | |
| Cure Method | Oven |
| Make to Order | |
| Material | |
| Maximum Operating Temperature | 130 degrees C |
| Mining Sector Approval | No |
| Shelf Life | |
| Temperature Rating | Class H (<=180 deg C) |
| Type | |
| What Needs to Be Coated | Bus Bar |
