Product Description

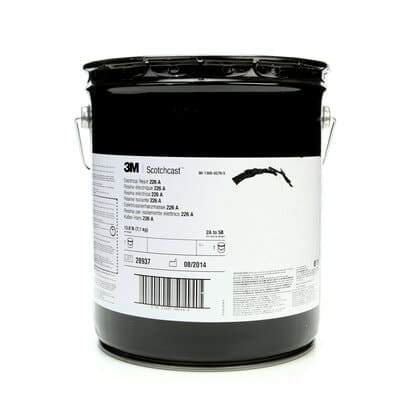

Scotchcast Electrical Resin 226 Part A (15.8 lb)
- 15 minute gel time at 60 °C (140 °F)
- 75 Shore A hardness
- Chemical and moisture resistant
- Elongates 105% longer than its original size for easy insulation or wrapping
- RoHS Compliant
- Useful for coating coils, transformers, motors, modules, electrical and electronic components
- Withstands a temperature range of 0 to 130 °C (32 to 266 °F)
3M Scotchcast Electrical Resin 226 has a low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a flexible and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. Its high dielectric strength offers excellent electrical insulating property to the resin. It has a high flash point, preventing any fire hazard due to quick ignition. Since the resin exhibits a hydrolytic stability property, it minimizes quick chemical decomposition, thus providing long lasting usage. RoHS Compliant.
For more information about Scotchcast Electrical Resin 226 Part A (15.8 lb), visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 20.9 lbs |
| Brand | |
| Base Polymer | Polyurethane |
| Cure Method | Room |
| Cure Temperature | ~23 Degree Celsius |
| Dielectric Strength (V/mil) | 420 V/mil |
| Elongation | |
| Flammability Rating | Not Self Extinguishing |
| Flexibility | Flexible |
| Hardness | |
| Material | |
| Mix Ratio | |
| Mixed Viscosity | Low (<10,000 cpi) |
| Product Type | Electrical Resin |
| Resin Cure | Room Cure Unfilled Resins |
| Resin Matrix | Unfilled |
| Temperature Rating | Class B (<=130 deg C) |
| Tensile Strength (Imperial) | 980 psi |
| Dimensions | 12 × 12 × 13.5 in |
