Product Description

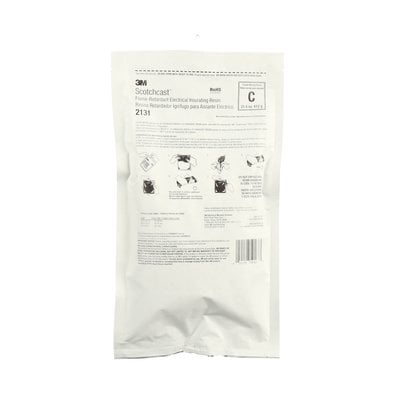

Scotchcast Resin bag SC 2131
- Continuous temperature of 90°C (194 °F), overload temperature of 130 °C (266 °F)
- Elongates 339% longer than its original size for easy insulation or wrapping
- Flame-retardant
- Has 17 minute gel time at 23 °C (73 °F)
- Rated up to 1 kV
- RoHS 2011/65/EU Compliant
- Typical hardness (ASTM D2240) – 82 Shore A
- Useful for replacing or repairing the jacket on both single and multi core power cables
3M Scotchcast Flame-Retardant Compound 2131 has low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a semi flexible property and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. It has a high flash point, preventing any fire hazard due to quick ignition. The flame retardant resin allows you to insulate cable splices operating up to 1 kV and to seal the crotch or sheath when terminating multi core cables. RoHS 2011/65/EU Compliant.
For more information about Scotchcast Resin bag SC 2131, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 14 lbs |
| Brand | |
| Net Weight | |
| Application | Sealing, electrical insulation and mechanical protection |
| Cable Shielding | Non-shielded |
| Cable Type | multi core, non shielded, polymeric insulated cable |
| Case Quantity | 10 |
| Container Size (Imperial) | 21.5 oz |
| Cure Method | Room |
| Dielectric Strength (V/mil) | 343 V/mil |
| Elongation | |
| Flame Retardant | |
| Flexibility | Semi-flexible |
| Gel Time | 17 min @ 73 °F (23 °C) |
| Hardness | |
| Material | |
| Maximum Operating Temperature | 90ºC (194ºF) continuous; overload rating 130ºC (266ºF) |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_minimum-operating-temperature-celsius | |
| Mining Sector Approval | Yes |
| Package Description | 2-part pouch |
| Product Color | Black |
| Product Series | 2123 |
| Product Type | Electrical Resin |
| Resin Matrix | Unfilled |
| Storage Time in Months | 36 |
| Tensile Strength (Imperial) | 1038 psi |
| Units Per Case | |
| Voltage | 1 kV |
| Voltage Application | Low Voltage |
| Voltage Rating | 0.6/1 kV |
| Dimensions | 14.8 × 13.1 × 7.7 in |
