Product Description
Scotchcast Inline Resin Power Cable Splice kit …
- Bonds to itself and to most modern cable jackets
- Designed for weather-exposed or direct burial locations
- Excellent multi-purpose moisture sealing resin
- Insulates and seals unshielded, single conductor cables and multiple conductor cables
- Rated for 5 kV and 1 kV cables

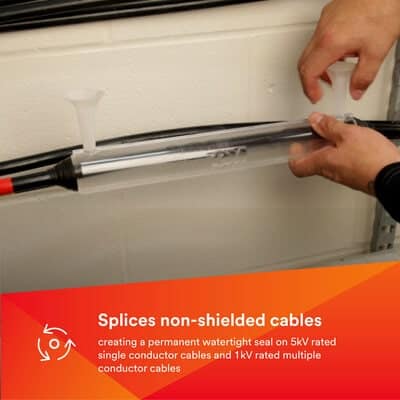

- Splices non-shielded submersible cables
- Tough and oil resistant
- UL Listed and RoHS 2011/65/EU Compliant

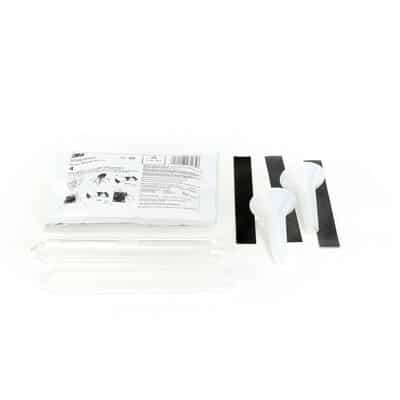

3M Scotchcast Inline Resin Power Cable Splice Kits 82-AN Series includes a mold body, pouring spouts, Scotch Rubber Splicing Tape 23 and 3M Scotchcast Electrical Insulating Resin 4N. It is perfect for splicing non-shielded submersible cables and single conductor or multiple conductor portable cables. UL listed for direct burial and submerged applications up to 600V and 90 °C. For use with UL listed connectors only. RoHS 2011/65/EU Compliant.
For more information about Scotchcast Inline Resin Power Cable Splice kit 82-A1N, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 7.553 lbs |
| Brand | |
| Maximum Conductor Size | 2 AWG |
| pa_maximum-insulation-outer-diameter | |
| Minimum Conductor Size | 10 mm² |
| pa_minimum-insulation-outer-diameter | |
| Application | Sealing, electrical insulation and mechanical protection |
| Cable Outside Diameter Range | 0.406 – 0.625 Inch |
| Cable Shielding | Single Conductor Portable Cable |
| Conductor Amount | Multiple, Single |
| Conductor Sizes (Imperial) | 18 AWG, 16 AWG, 14 AWG, 2 AWG, 12 AWG, 10 AWG, 8 AWG, 4 AWG, 6 AWG |
| Dielectric Strength | |
| Insulation O.D. Range | 0.406 – 0.625 Inch |
| pa_insulation-outside-diameter-range | |
| pa_insulation-outside-diameter-range-metric | |
| Material | |
| pa_maximum-cable-outside-diameter | |
| pa_maximum-cable-outside-diameter-metric | |
| Maximum Operating Voltage | 5 Kilovolt |
| Product Color | Black |
| Product Series | 82-A Series |
| Product Type | Resin Splice |
| Splice Type | |
| Voltage | 5 kV |
| Voltage Application | Medium Voltage |
| Dimensions | 13.1 × 10.2 × 14.3 in |
