Product Description

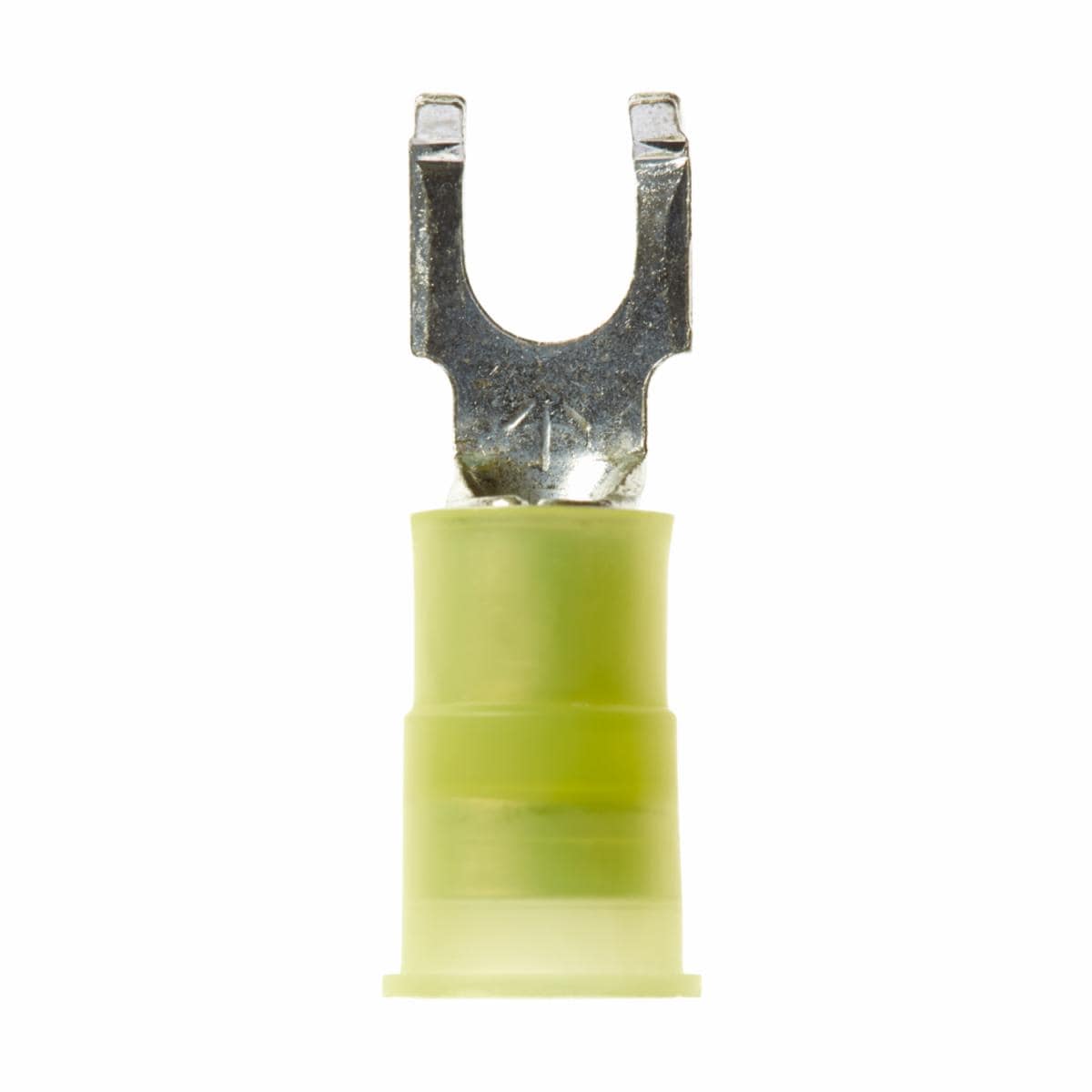

Scotchlok Block Flanged Fork
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Electrolytic copper construction offers good conductivity
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Suitable for use in a terminal block
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Flanged Block Fork Terminal is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Block Flanged Fork, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 2.273 lbs |
| Make to Order | |
| Brand | |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Barrel Inside Diameter | 0.135 Inch |
| Barrel Length (Imperial) | 0.25 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Clearance (C) | 0.29 Inch |
| Dimension E | 0.84 Inch |
| Fork Type | Flanged Block |
| Insulation Material | Nylon with Insulation Grip |
| pa_maximum-insulation-outer-diameter-imperial | |
| Overall Length (Imperial) | 1.03 in |
| Overall Width (Imperial) | 0.32 in |
| Stud Size | #10 |
| Terminal Style | Flanged Block |
| Terminal Type | Fork |
| UL File Number | E23438 |
| Units Per Case | |
| Dimensions | 5.1 × 4.6 × 3.1 in |
