Product Description

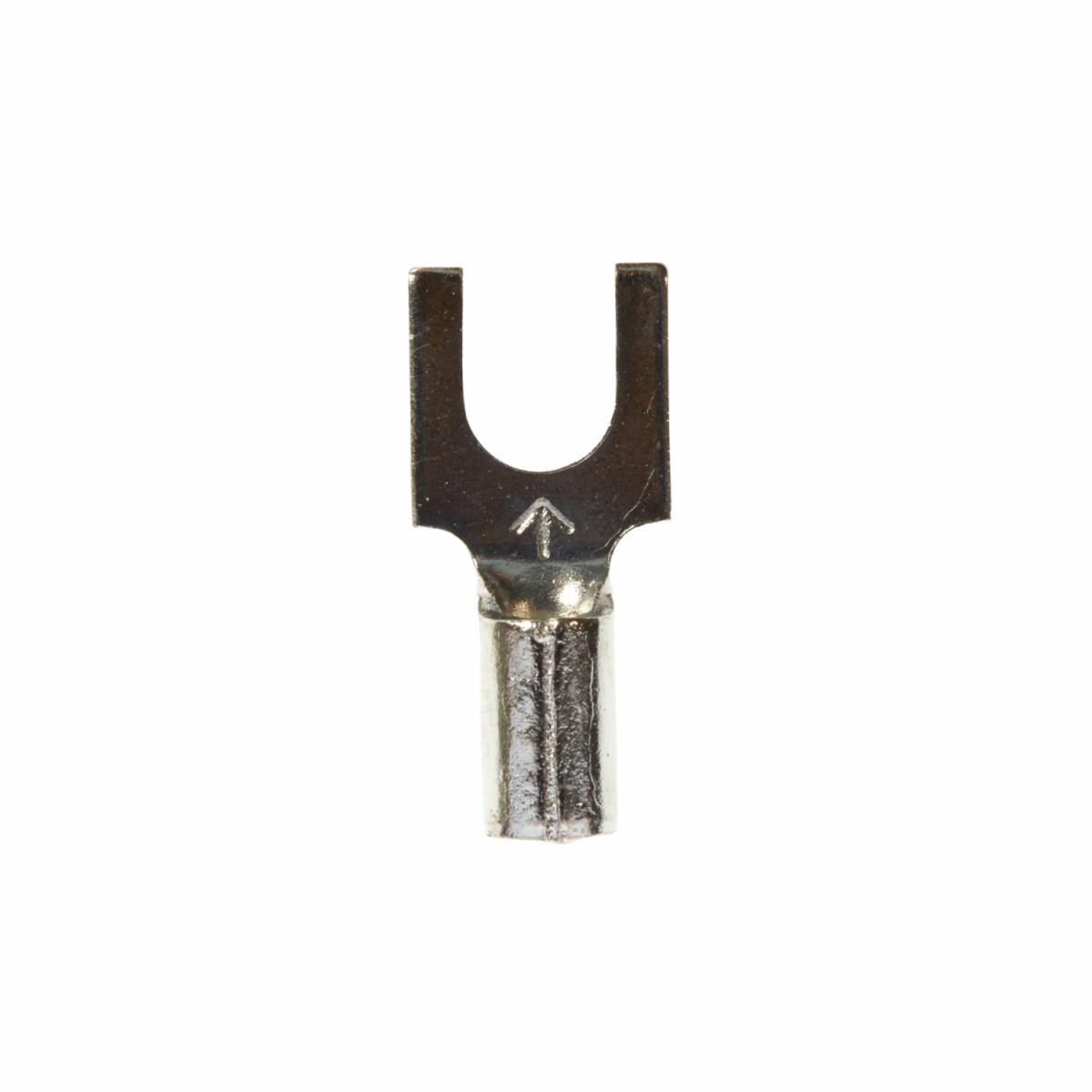

Scotchlok Block Fork Non-Insulated
3M Scotchlok Block Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. The sides of the terminal lie flat against the barrier portion of the terminal block to provide electrical contacts. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Block Fork Non-Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 1.191 lbs |
| Make to Order | |
| Brand | |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.31 mm² |
| Length | |
| Width | |
| Barrel Inside Diameter | 0.090 Inch |
| Barrel Style | Brazed |
| CSA File Number | LR22190 |
| Clearance (C) | 0.25 Inch |
| Dimension E | 0.50 Inch |
| Fork Type | Block |
| Insulation Material | Non-insulated |
| Product Color | Metal |
| Stud Size | #8 |
| Terminal Style | Block |
| Terminal Type | Fork |
| UL File Number | E23438 |
| Units Per Case | |
| Dimensions | 9.3 × 3.6 × 5.1 in |
