Product Description

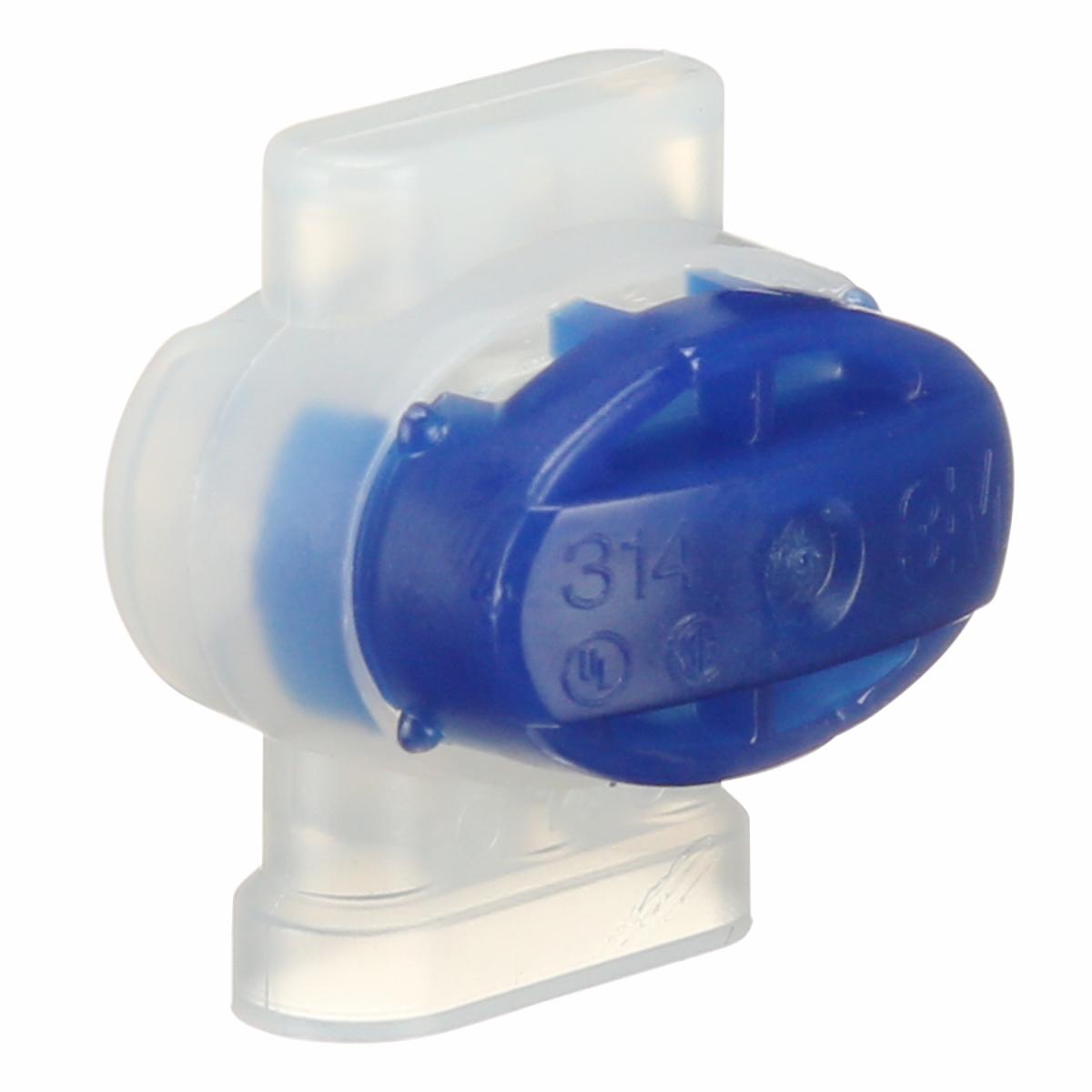

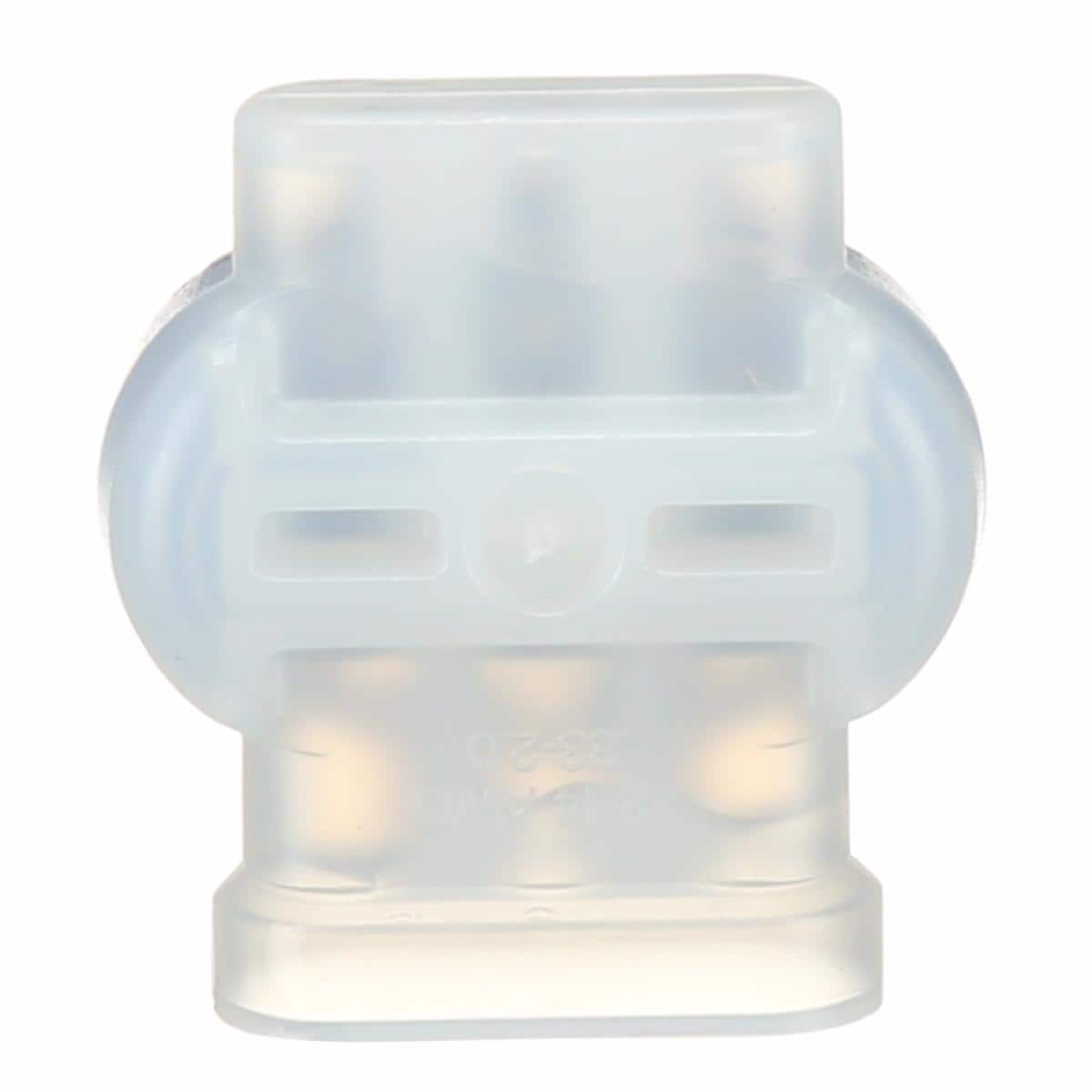

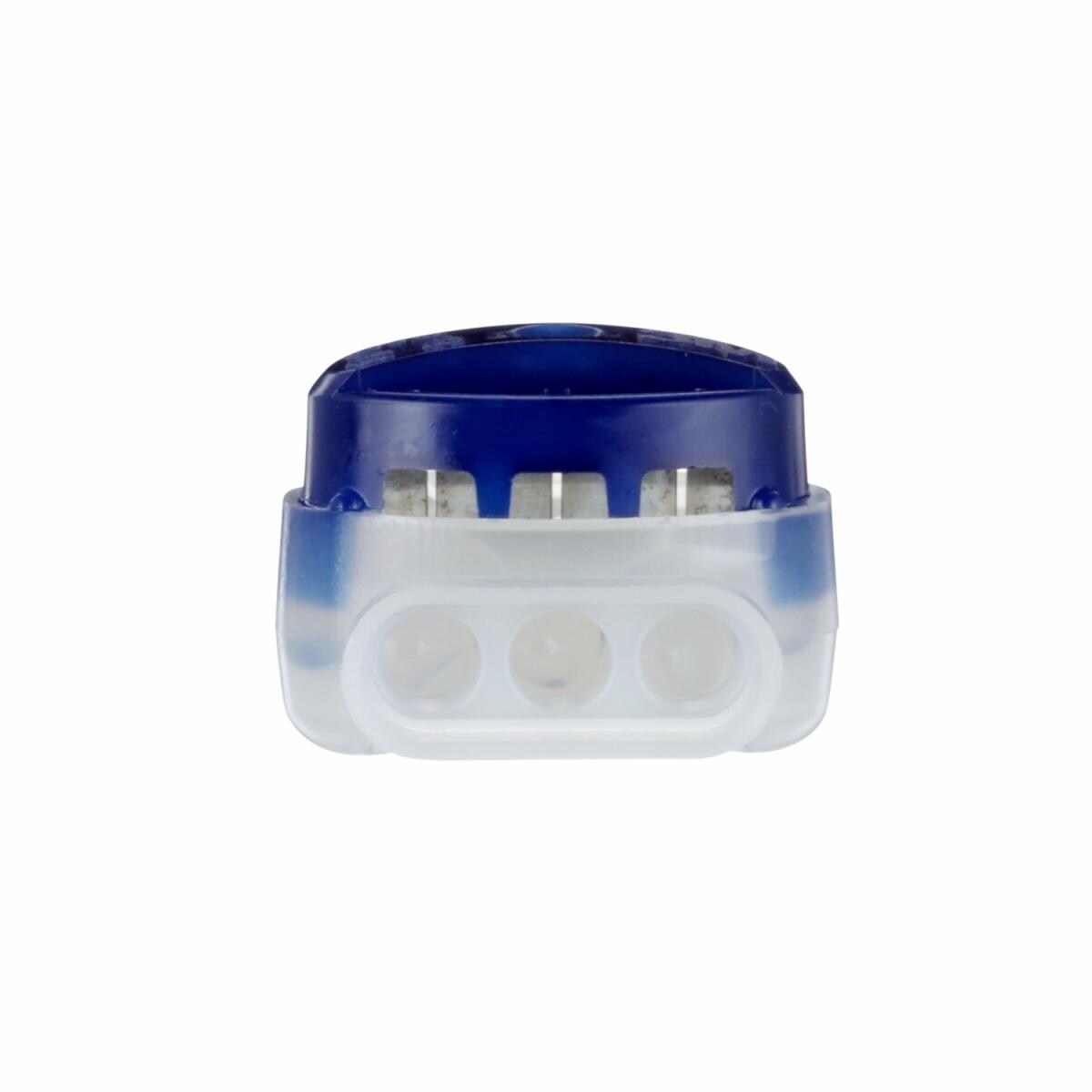

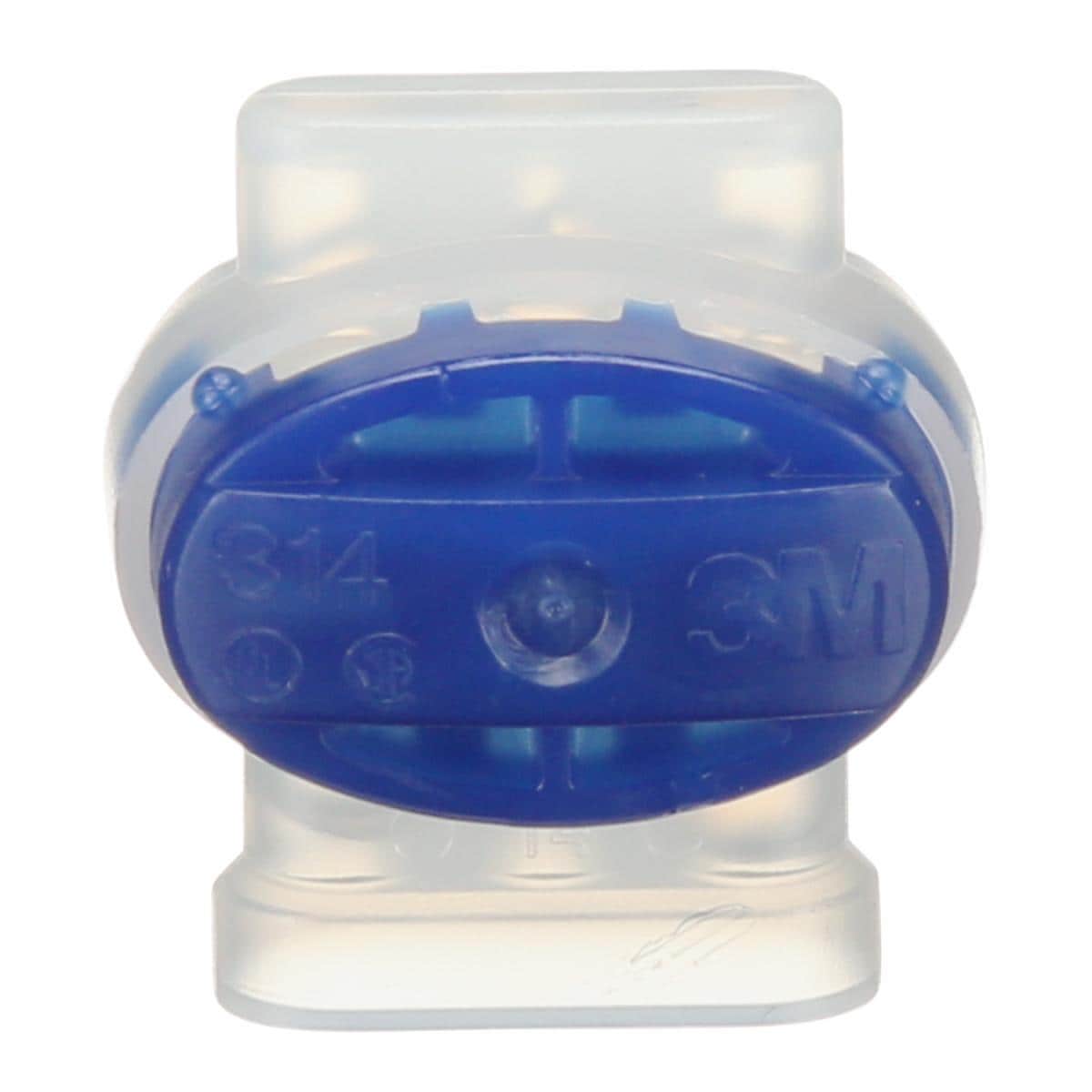

Scotchlok Electrical IDC 314-BIN
- Accommodates 22 to 14 AWG solid/stranded
- Blue cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
- Brass element construction for good conductivity and tin plating for corrosion resistance
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M Scotchlok Insulation Displacement Connector 314 is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Electrical IDC 314-BIN, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 9.501 lbs |
| Brand | |
| Conductor Sizes | .34 mm², 2.5 mm² |
| pa_run-maximum-insulation-outer-diameter | |
| pa_tap-maximum-insulation-outer-diameter | |
| CSA File Number | LR15503 |
| Connection Type | Pigtail |
| Flame Retardant | |
| Insulation Color | cap blue, body white |
| Interrupt Free Shifting | No |
| Material | |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| Package Quantity | 1000 |
| Product Color | Blue |
| Recommended Crimping Tool | E-9BM and/or Mechanics (slip joint) Pliers |
| UL File Number | E23438 |
| Voltage Application | Low Voltage |
| Wire Connector Type | IDC Connectors |
| Dimensions | 8.9 × 8.7 × 9 in |
