Product Description

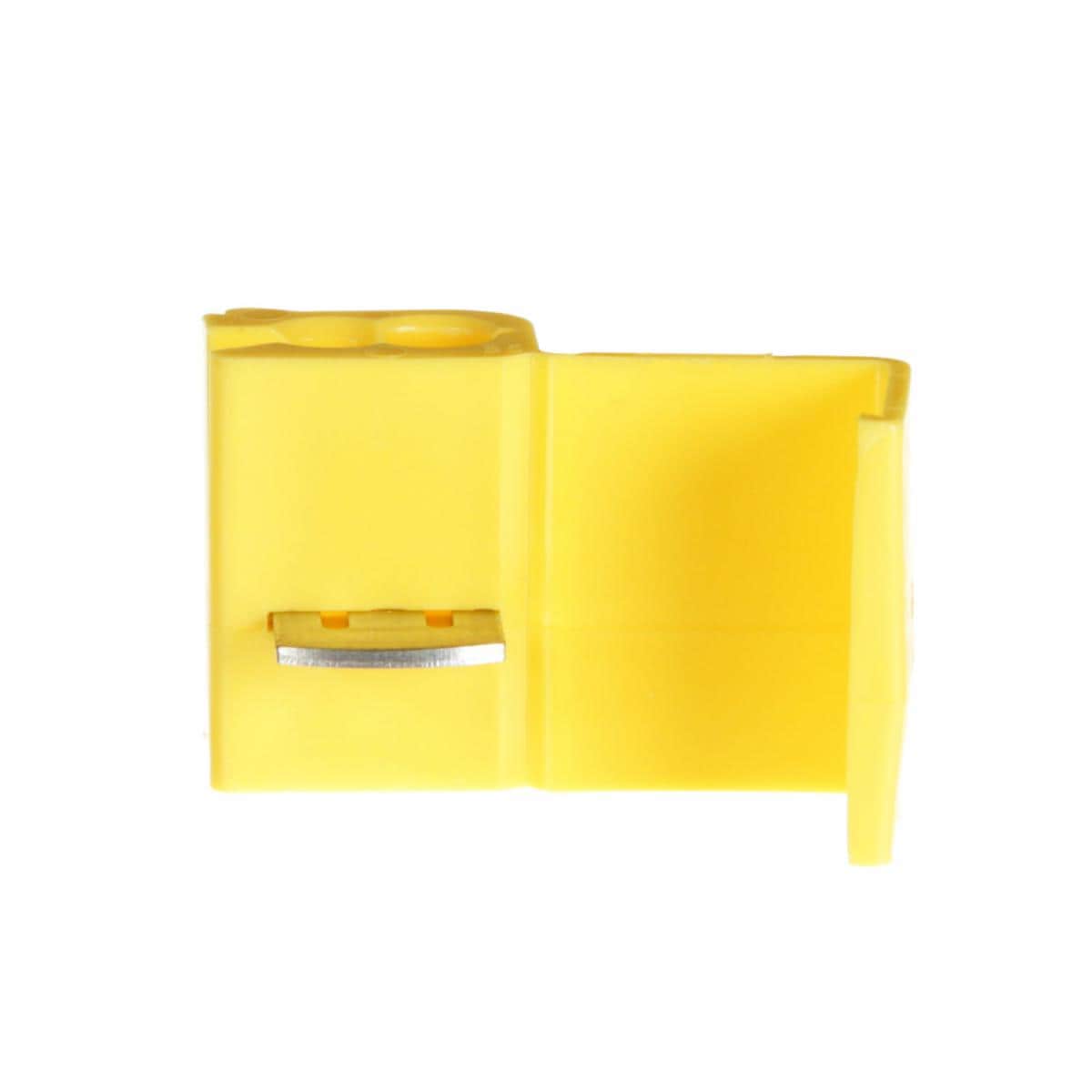

Scotchlok Electrical IDC 562-BIN
- Accommodates 18 to 14 AWG solid/stranded
- Rated for 32V applications
- RoHS 2011/65/EU Compliant
- Yellow, polypropylene-insulated connector is suitable for tap or parallel splicing
3M Scotchlok Insulation Displacement Connector 562 is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 194 degrees F (90 degrees C). UL Listed and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Electrical IDC 562-BIN, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 5.5 lbs |
| Brand | |
| Conductor Sizes | 10 AWG (Stranded), 12 AWG |
| Maximum Conductor Size | 10 AWG (Stranded), 12 AWG |
| Minimum Conductor Size | 12 AWG |
| pa_run-maximum-insulation-outer-diameter | |
| pa_tap-maximum-insulation-outer-diameter | |
| Connection Type | Double Run or Tap |
| Connector / Connector Tool | 3M Crimping Tool E-9BM and/or 9" Lineman's Pliers |
| Flame Retardant | |
| Insulation Color | Yellow |
| Interrupt Free Shifting | No |
| Material | |
| Max. Number of Cores | 2 |
| pa_maximum-recommended-voltage-rating | |
| Moisture Resistant | No |
| Package Quantity | 1000 |
| Product Color | Yellow |
| UL File Number | E23438 |
| Units Per Case | |
| Voltage Application | Low Voltage |
| Wire Connector Type | IDC Connectors |
| Dimensions | 11.9 × 10.4 × 7.8 in |
