Product Description

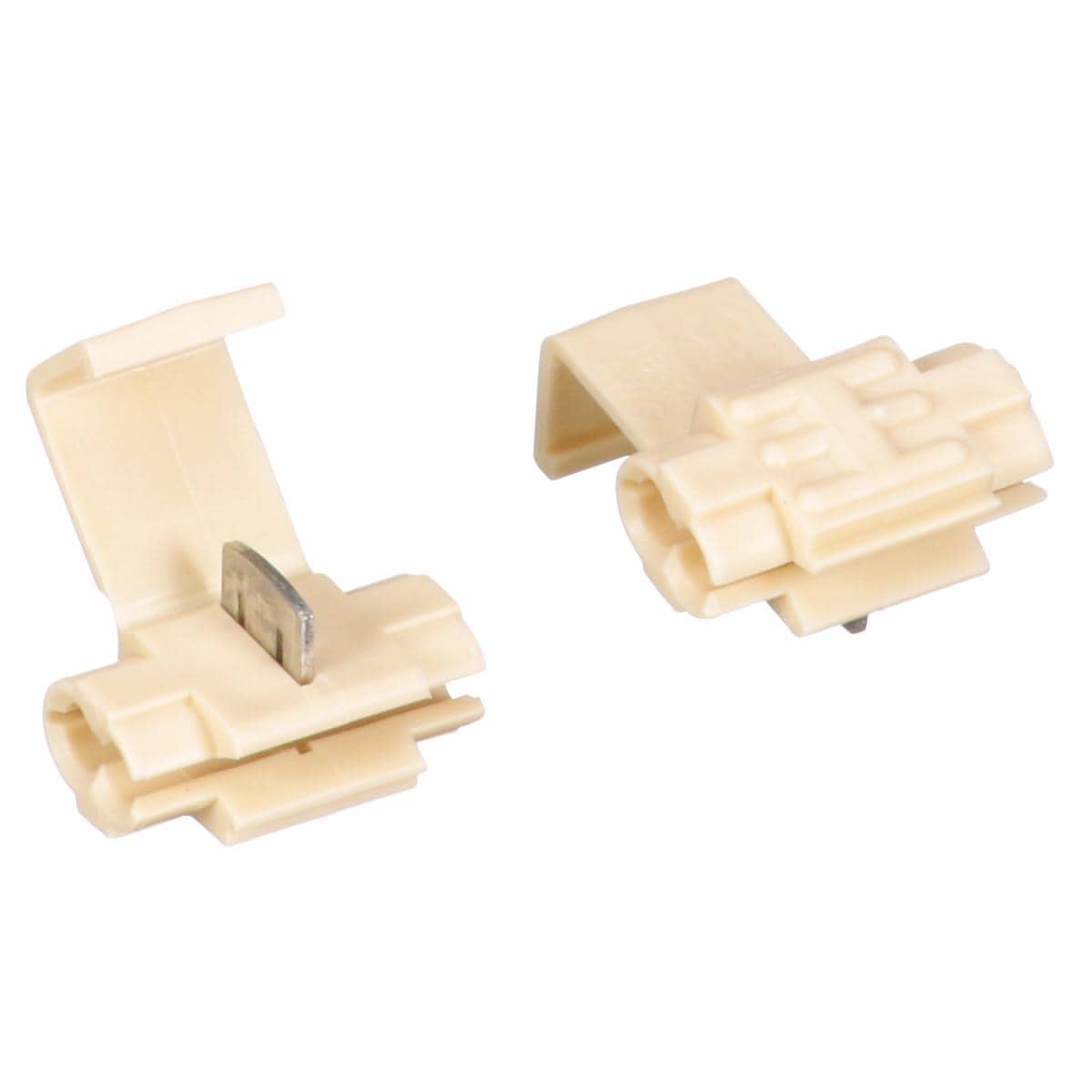

Scotchlok Electrical IDC 564-BULK
- Accommodates 18 to 14 AWG solid/stranded (tap) and 12 to 10 AWG solid/stranded (run)
- Beige polypropylene-insulated connector for parallel splicing
- Connector rated 32 volts maximum
- Self-Stripping Electrical Connector (as manufactured by 3M, part No. 564) capable of connecting 2 solid or stranded copper wires in the range of No. 18 thru No. 14 AWG in a tap, inline, double run, or pigtail application.
- Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
- Temperature rated 90˚C maximum
- Use Part No. 564 to electrically connect two wires in a tap, inline, pigtail, or double run installation and insulate the connection
3M Scotchlok Insulation Displacement Connector 564 is rated for 32V applications. It withstands temperatures of 194 degrees F (90 degrees C).
For more information about Scotchlok Electrical IDC 564-BULK, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 17.6 lbs |
| Brand | |
| Conductor Sizes | 18 AWG, 14 AWG |
| pa_run-maximum-insulation-outer-diameter | |
| pa_tap-maximum-insulation-outer-diameter | |
| Connection Type | Double Run or Tap |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| Moisture Resistant | No |
| Product Type | Double Run |
| Recommended Crimping Tool | E-9BM or 9 in. Linemans Pliers |
| Units Per Case | |
| Voltage Application | Low Voltage |
| Wire Connector Type | IDC Connectors |
| Dimensions | 16.5 × 12.1 × 10.7 in |
