Product Description
Advantages of 3M™ Scotchlok™ Electrical IDC 804-100/BAG
- Blue, polypropylene-insulated connector electrically taps into a wire in mid-span without cutting
- Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
- Accommodates 18 to 14 AWG solid/stranded
- RoHS 2011/65/EU Compliant

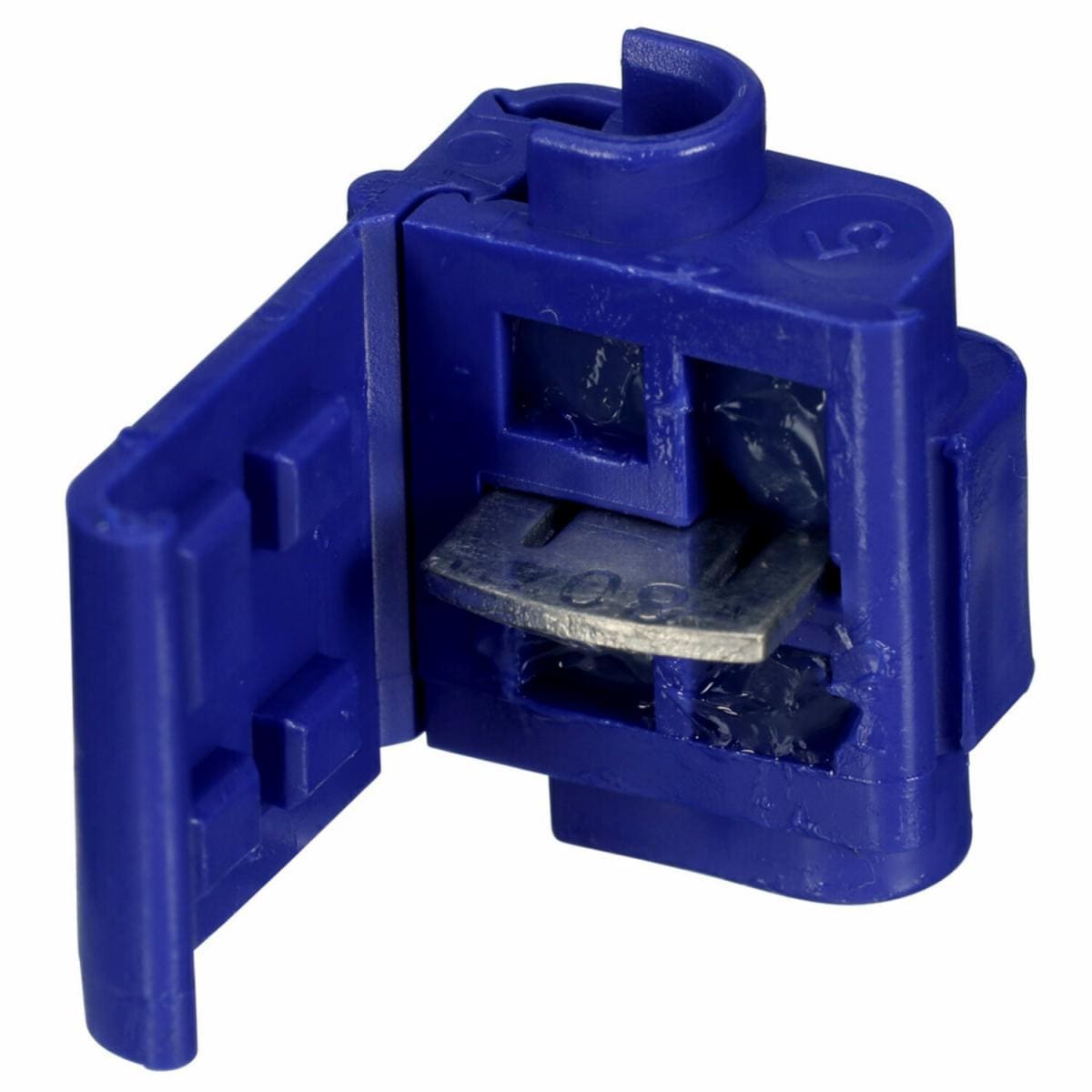

3M™ Scotchlok™ Electrical IDC 804-100/BAG electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated, self-stripping and offers a moisture resistant seal.
3M™ Scotchlok™ Electrical IDC 804-100/BAG is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. It is 600V rated and withstands temperatures of 167 degrees F (75 degrees C). UL Listed and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 4.55 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Brand | |
| Color | |
| Conductor Sizes | 14 AWG (Stranded) 16 AWG 18 AWG |
| Connector Type | Run & tap |
| Connector Style | Insulation displacement |
| Flame Retardant | Yes |
| Insulation Outer Diameter | 0.145 in |
| Insulation Color | Black |
| Material | |
| Maximum Conductor Sizes | 14 AWG (Stranded) 16 AWG |
| Maximum Operating Temperature | 90 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Sizes | 18 AWG |
| Moisture Resistant | Yes |
| Operating Temperature | 90 °C |
| Recommended Crimping Tool | E-9BM or 9 in. Linemans Pliers |
| Run Maximum Insulation Outer Diameter | 0.145 in |
| Tap Maximum Insulation Outer Diameter | 0.145 in |
| Type | |
| Wire Connector Type | IDC connector |
