Product Description
Scotchlok Electrical IDC 905-POUCH
- 951 accommodates 22 to 18 AWG solid/stranded, 952 accommodates 18 to 14 AWG solid/stranded and 953 accommodates 12 AWG solid/stranded
- Connector rated 32 volts maximum

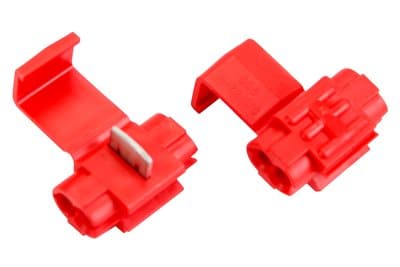

- Red, polypropylene-insulated connector is suitable for tap or parallel splicing
- Self-Stripping Electrical Connector (as manufactured by 3M, part No. 905) capable of connecting two solid or stranded copper wires, in the range of No. 22 thru No. 18 AWG (inside channel) and No. 18 thru No. 14 AWG (outside channel) in a tap, inline, double run, or pigtail application.
- Suitable for use in light fixtures, appliances and other electrical OEM applications
- Temperature rated 90˚C maximum
- The 905 contains a deformable wire stop, inner channel
- Use Part No. 905 to electrically connect two wires in a tap, inline, pigtail, or double run installation and insulate the connection.
The connector insulation is manufactured from polypropylene and is rated for 32V applications. It withstands temperatures of 194 degrees F (90 degrees C).
For more information about Scotchlok Electrical IDC 905-POUCH, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 2.058 lbs |
| Brand | |
| Conductor Sizes | 1 mm² (Run), .34 mm² (Tap), 2.5 mm² (Run), 1 mm² (Tap) |
| pa_run-maximum-insulation-outer-diameter | |
| pa_tap-maximum-insulation-outer-diameter | |
| Case Quantity | 500 |
| Connection Type | Double Run or Tap |
| Interrupt Free Shifting | No |
| Material | |
| Max. Number of Cores | 2 |
| Recommended Crimping Tool | E-9BM or 9 in. Linemans Pliers |
| Units Per Case | |
| Voltage Application | Low Voltage |
| Wire Connector Type | IDC Connectors |
| Dimensions | 10.4 × 10.4 × 6.8 in |
