Product Description

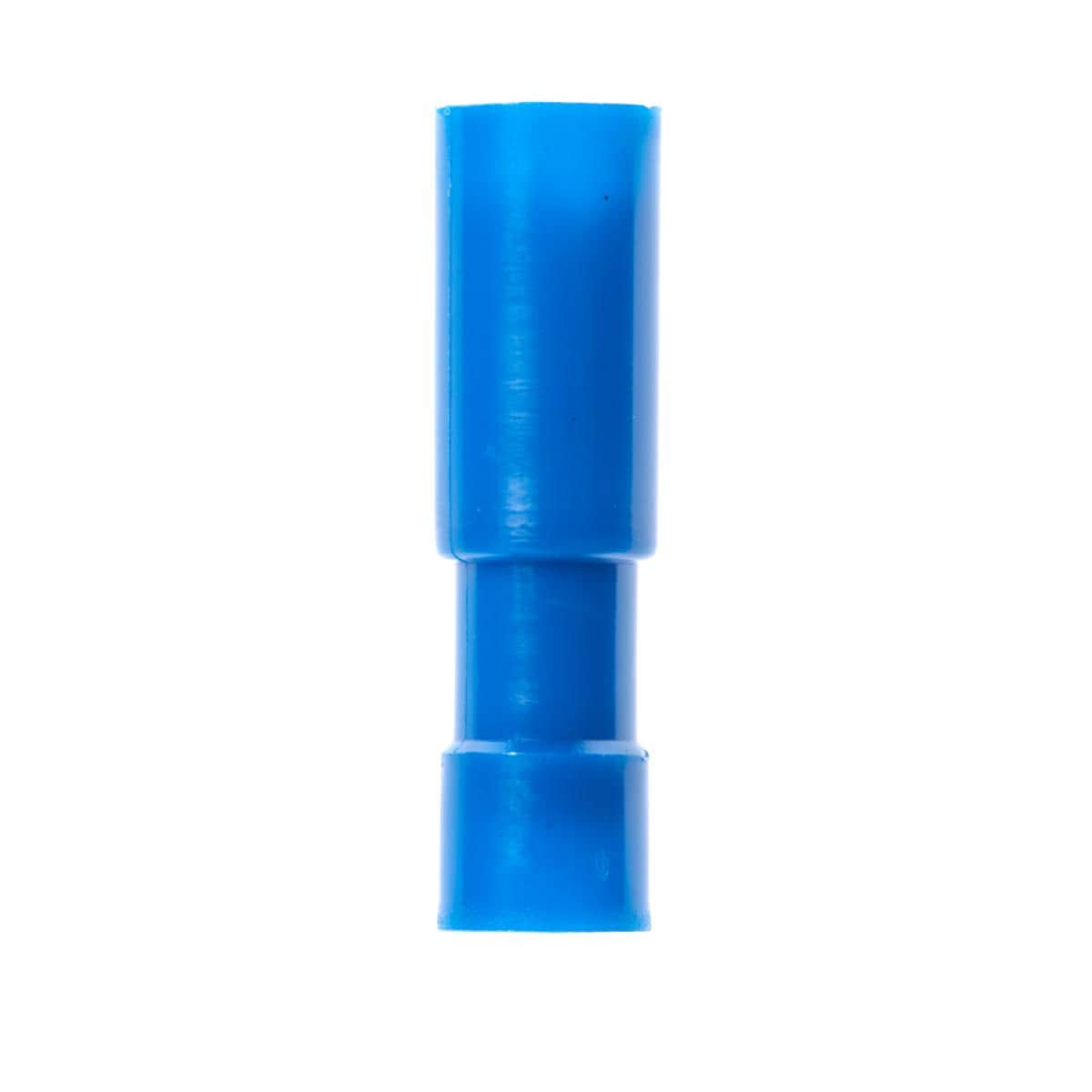

Scotchlok Female Disconnect
- 1000/case
- Accommodates wire sizes 22 to 18 AWG
- Allows for quick and easy disconnect of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Mates with 0.156-in wide male tab
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- Red nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Color-Coded Bullet Style Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The snap plug features a butted-seam barrel and is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures positive grip and has a stepped design for mistake-proof crimping. RoHS 2011/65/EU Compliant.
For more information about Scotchlok Female Disconnect, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 3.202 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.156 in |
| Maximum Conductor Size | 14 AWG |
| pa_maximum-insulation-outer-diameter | |
| Minimum Conductor Size | 1.5 mm² |
| Barrel Inside Diameter | 0.115 Inch |
| Barrel Length (Imperial) | 0.25 Inch |
| Barrel Style | Butted |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Material | Nylon with Insulation Grip |
| Mating Snap Diameter (S) | 0.156 Inch |
| Overall Length (Imperial) | 0.99 in |
| Pad Width | 0.156 in |
| Tab Width | 0.250 |
| Terminal Style | Bullet Snap Plug |
| Units Per Case | |
| Dimensions | 5.3 × 5.2 × 4.8 in |
