Product Description

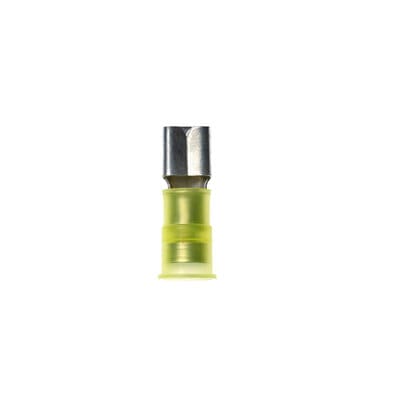

Advantages of 3M™ Scotchlok™ Female Disconnect MNGI10-250DFK
- Nylon-insulated, butted-seam barrel offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Female Disconnect MNGI10-250DFK has a wire range of 16-14 AWG and has case quantities of 500 per case.
3M™ Scotchlok™ Female Disconnect MNGI10-250DFK are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.128 in |
| Barrel Length | 0.25 in |
| Barrel Style | Interlocking barrel |
| Brand | |
| Color | |
| Connection Width | 0.25 in |
| CSA File Number | LR22190 |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Material | Nylon with insulation grip |
| Make to Order | |
| Mates with Female Width | 0.25 in |
| Mates with Male Tab Width | 0.25 in |
| Maximum Conductor Size | 10 AWG |
| Maximum Insulation Outer Diameter | 0.145 in |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size | 12 AEG |
| Overall Length | |
| Pad Width | 0.25 in |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
