Product Description

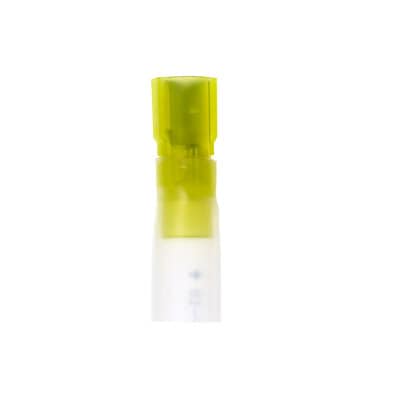

Advantages of 3M™ Scotchlok™ Female Disconnect MNHU10-250DFIK
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
- Mates with 0.25-in wide male tab
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a maximum temperature of 221 degrees F (105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Female Disconnect MNHU10-250DFIK has dents and rolled edges for easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Female Disconnect MNHU10-250DFIK attaches to the mating part with a tongue that slips over the male tab. This versatile terminal has a butted-seam barrel that is covered by a see-through, pre-insulated transparent tubing. The tubing provides seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.165 in |
| Barrel Length | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Connection Type | Wire |
| Connection Width | 0.25 in |
| Connector/ Connector Tool | Connector |
| Connector Style | Insulation displacement |
| Diameter | |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Flame Retardant | No |
| Grease Filling Against Corrosion | No |
| Insulation Color | Yellow |
| Insulation Material | Heat shrink |
| Interrupt Free Shifting | No |
| Make to Order | |
| Male Tab Width (W') | 0.25 in |
| Mates with Female Width | 0.25 in |
| Mates with Male Tab Width (W) | 0.25 in |
| Maximum Conductor Size | 10 AWG |
| Maximum Insulation Outer Diameter | 3.7 mm |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Voltage Rating | 600 V |
| Minimum Conductor Size | 12 AEG |
| Overall Diameter | 0.32 in |
| Overall Length | |
| Overall Width | 0.39 in |
| Pad Width | 0.25 in |
| Tab Width | 0.25 |
| Terminal Style | Fully insulated |
| Terminal Type | Disconnect |
