Product Description

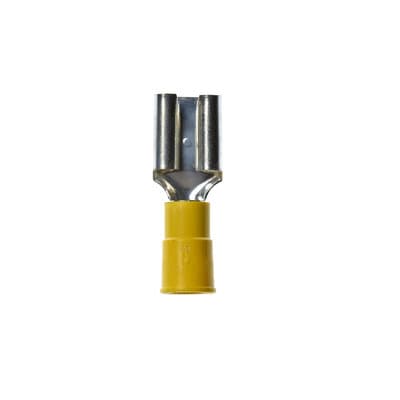

Scotchlok Female Disconnect
- Allows for quick and easy disconnect of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
3M Scotchlok Vinyl Insulated Butted Seam Female Disconnect attaches to the mating part with a tongue that slips over the male tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve which serves to guide the wire into position. The polyvinyl chloride sleeve provides electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Female Disconnect, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 2.6 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.375 in |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Barrel Inside Diameter | 0.175 Inch |
| Barrel Style | Butted |
| Bullet Diameter | 0.180 |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Material | Vinyl |
| Mates with Female Width | 0.375 Inch |
| Mates with Male Tab Width (W') | 0.375 Inch |
| pa_maximum-insulation-outer-diameter-imperial | |
| Overall Length (Imperial) | 1.23 in |
| Pad Width | 0.375 in |
| Solution for | Wireless Network: Infrastructure Accessories |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| Units Per Case | |
| Dimensions | 5.3 × 5.2 × 4.8 in |
