Product Description

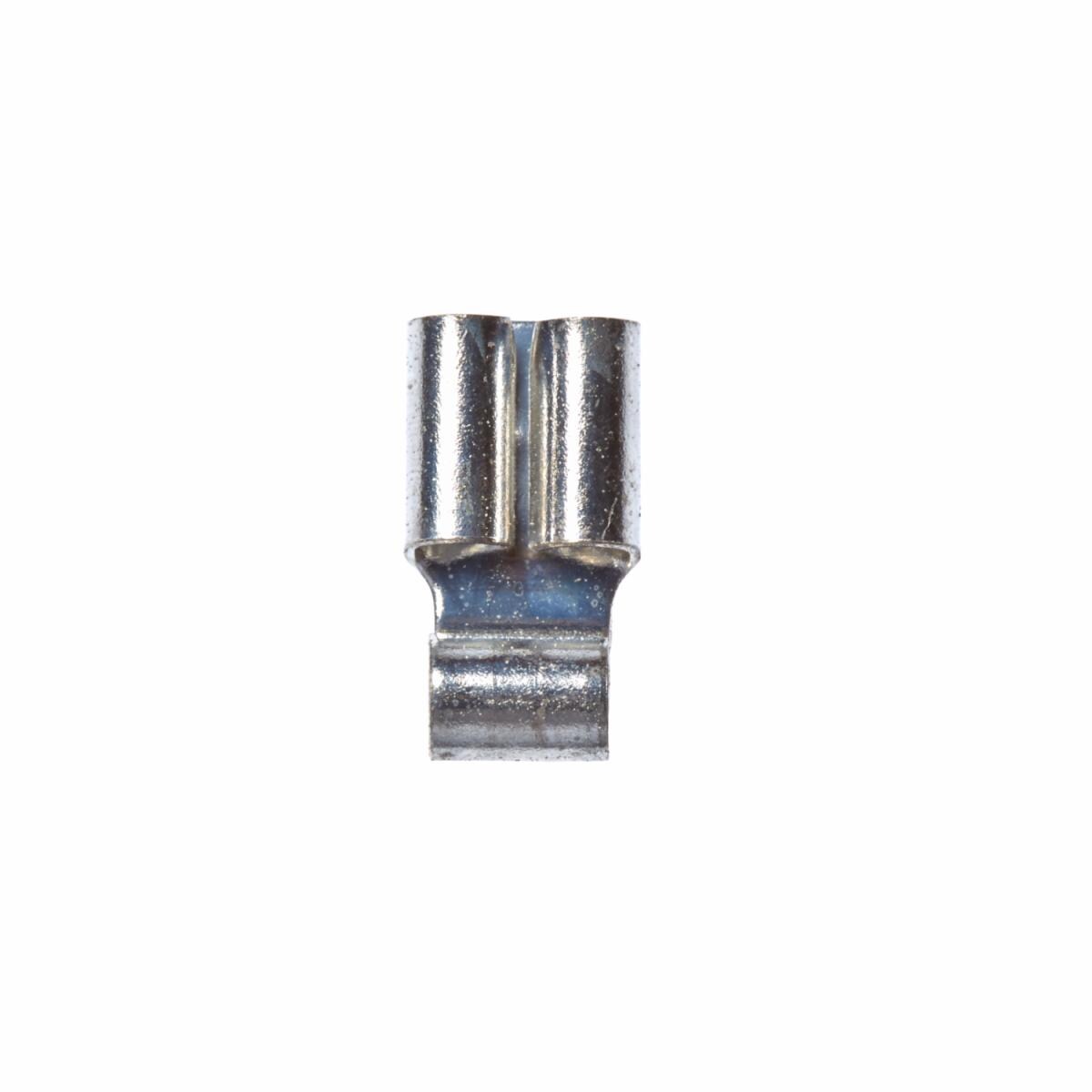

Scotchlok Flag Disconnect
- Allows for quick and easy disconnect of wires
- Dents and rolled edges of this female disconnect flag terminal offer excellent holding force
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
3M Scotchlok Female Flag Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The terminal has a non-insulated, butted-seam barrel and a beveled mouth to easily guide the wire into position. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Flag Disconnect, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 1.192 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.187 in |
| Maximum Conductor Size | 14 AWG |
| pa_maximum-insulation-outer-diameter | |
| Minimum Conductor Size | 1.5 mm² |
| Length | |
| Barrel Inside Diameter | 0.095 Inch (2.41 mm) |
| Barrel Length (Imperial) | >=0 Inch |
| Barrel Style | Butted |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Color | Blue |
| Insulation Material | Non-insulated |
| Material | |
| Mates with Female Width | >0 Inch |
| Mates with Male Tab Width (W') | 0.187 Inch |
| pa_maximum-insulation-outside-diameter | |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_maximum-recommended-voltage-rating | |
| Maximum Voltage Rating | 600 to 1000 V |
| Product Color | Blue |
| Product Type | Connector |
| Solution for | Wireless Network: Infrastructure Accessories |
| Tab Width | 0.187 |
| Terminal Style | Flag |
| Terminal Type | Disconnect |
| Units Per Case | |
| Dimensions | 9.4 × 3.6 × 5.1 in |
