Product Description

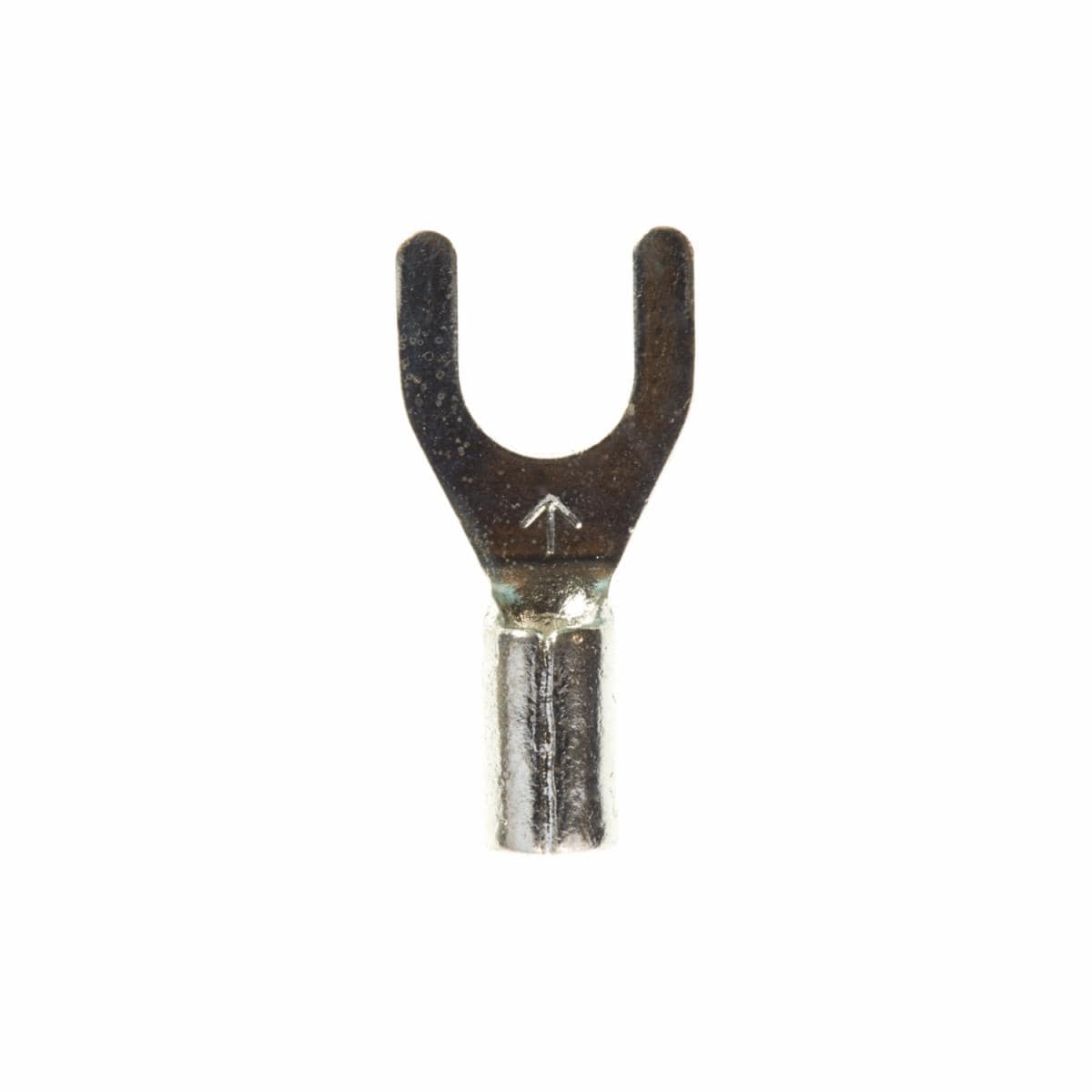

Scotchlok Fork Non-Insulated
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Beveled mouth offers easy insertion of wires
- Electrolytic copper construction offers good conductivity
- Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Wider tongue design for use on free-standing studs
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
3M Fork Terminal withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Fork Non-Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 0.002 lbs |
| Brand | |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.31 mm² |
| Barrel Inside Diameter | 0.090 Inch |
| Barrel Style | Brazed |
| CSA File Number | LR22190 |
| Clearance (C) | 0.29 Inch |
| Dimension E | 0.54 Inch |
| Fork Type | Standard |
| Insulation Material | Non-insulated |
| Overall Length (Imperial) | 0.7 in |
| Overall Width (Imperial) | 0.34 in |
| Stud Size | #10 |
| Terminal Style | Standard |
| Terminal Type | Fork |
| UL File Number | E23438 |
| Units Per Case | |
| Dimensions | 1.6 × 3.1 × 4.4 in |
