Product Description

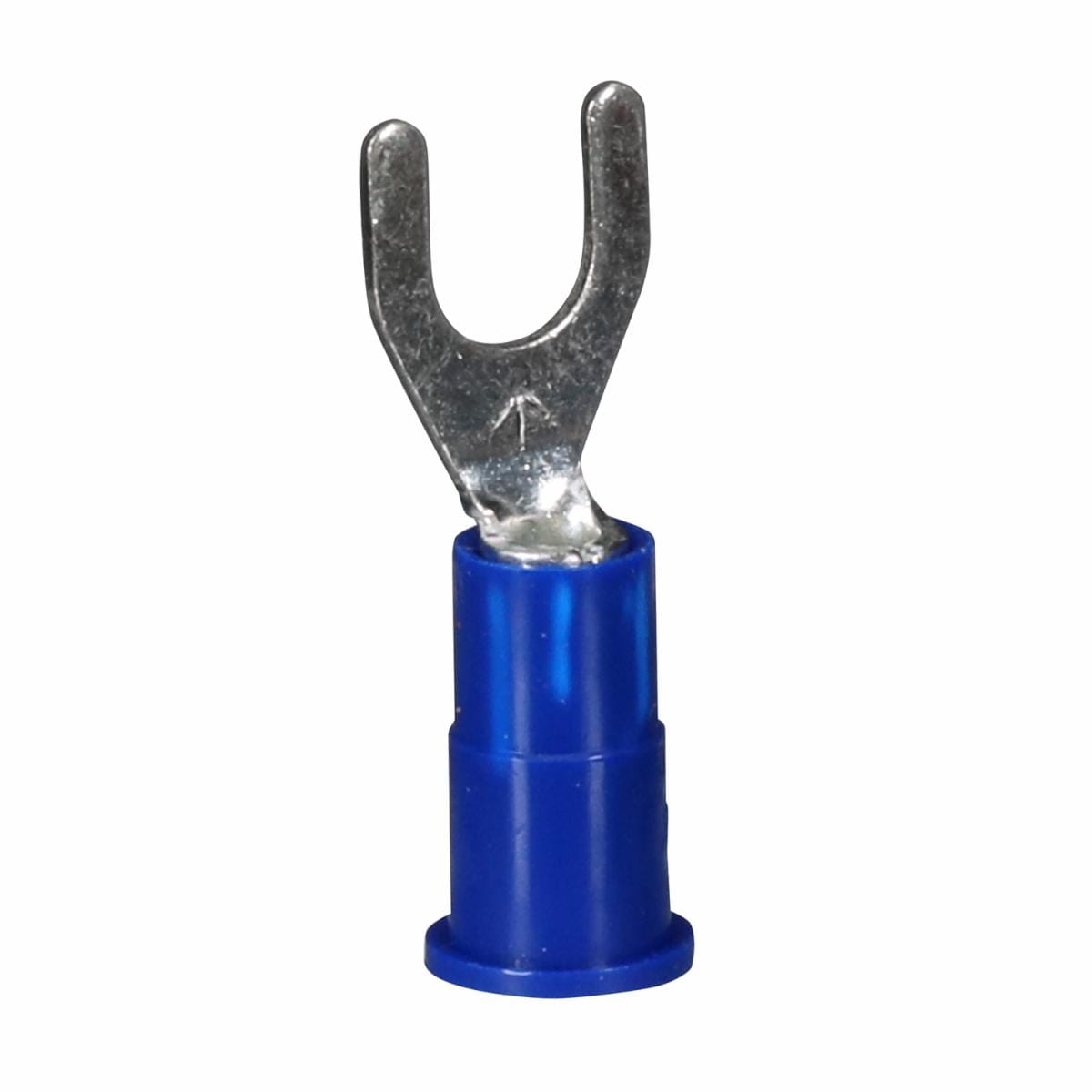

Scotchlok Fork Vinyl Insulated
3M Scotchlok Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Fork Vinyl Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 0.003 lbs |
| Brand | |
| Maximum Conductor Size | 14 AWG |
| pa_maximum-insulation-outer-diameter | |
| Minimum Conductor Size | 1.31 mm² |
| Stud Diameter | 0.19 in |
| Barrel Inside Diameter | 0.090 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Clearance (C) | 0.29 Inch |
| Dimension E | 0.74 Inch |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| Overall Length (Imperial) | 0.9 in |
| Overall Width (Imperial) | 0.34 in |
| Stud Size | #10 |
| Terminal Style | Standard |
| Terminal Type | Fork |
| UL File Number | E23438 |
| Units Per Case | |
| Dimensions | 1.6 × 3.1 × 4.3 in |
