Product Description

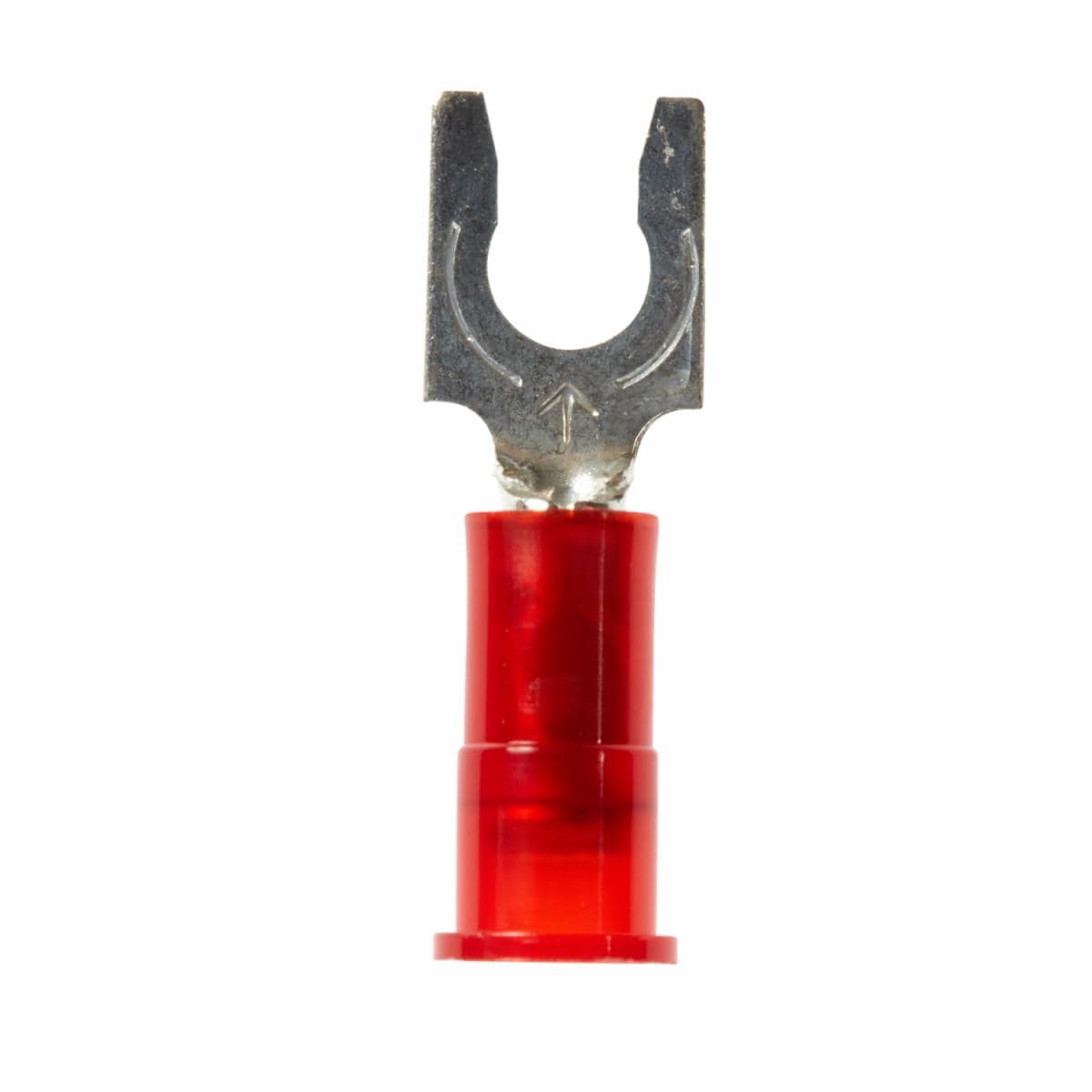

Scotchlok Locking Fork Nylon Insulated
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Spring-like tongue firmly fits around the stud
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Locking Fork Nylon Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 0.004 lbs |
| Brand | |
| Maximum Conductor Size | .0823 mm² |
| Minimum Conductor Size | 0.326 mm² |
| Stud Diameter | 0.164 in |
| Barrel Inside Diameter | 0.070 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Clearance (C) | 0.25 Inch |
| Dimension E | 0.69 Inch |
| Fork Type | Locking |
| Insulation Material | Nylon with Insulation Grip |
| pa_maximum-insulation-outer-diameter-imperial | |
| Maximum Lock Width | 0.34 Inch |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| Overall Length (Imperial) | 0.87 in |
| Overall Width (Imperial) | 0.3 in |
| Stud Size | #8 |
| Terminal Style | Locking |
| UL File Number | E23438 |
| Units Per Case | |
| Dimensions | 1.6 × 3.1 × 4.4 in |
