Product Description

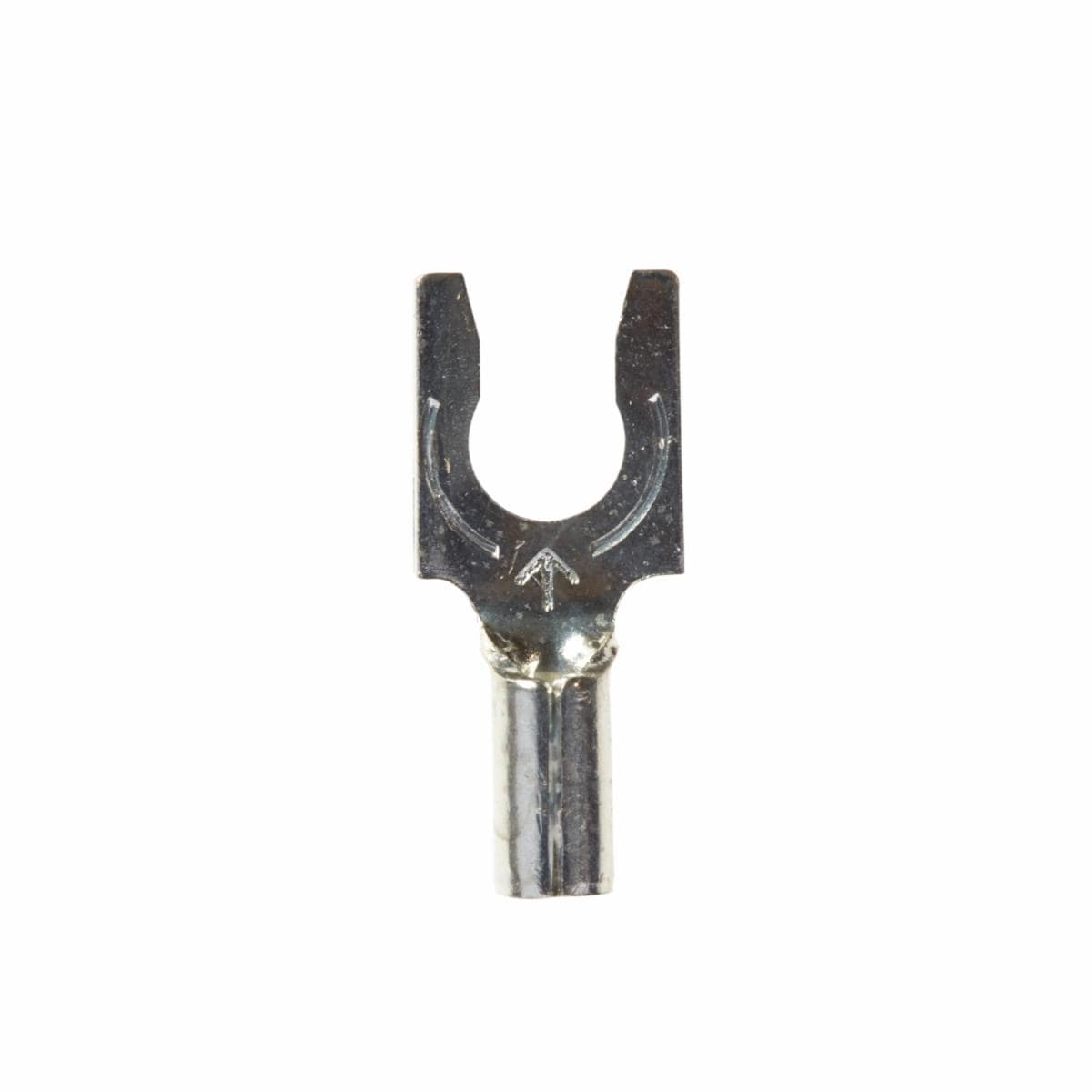

Scotchlok Locking Fork Non-Insulated
3M Scotchlok Locking Fork Terminal has a non-insulated, butted-seam barrel with a beveled mouth to guide the wire into position easily. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Locking Fork Non-Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 2.003 lbs |
| Make to Order | |
| Brand | |
| Maximum Conductor Size | .0823 mm² |
| Minimum Conductor Size | 0.326 mm² |
| Barrel Inside Diameter | 0.07 Inch |
| Barrel Length (Imperial) | 0.25 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Clearance (C) | 0.25 Inch |
| Dimension E | 0.5 Inch |
| Fork Type | Locking |
| Insulation Material | Non-insulated |
| Maximum Lock Width | 0.34 Inch |
| Overall Length (Imperial) | 0.68 in |
| Overall Width (Imperial) | 0.3 in |
| Stud Size | #8 |
| Terminal Style | Locking |
| Terminal Type | Fork |
| UL File Number | E70512 |
| Units Per Case | |
| Dimensions | 9.4 × 3.6 × 5.1 in |
