Product Description

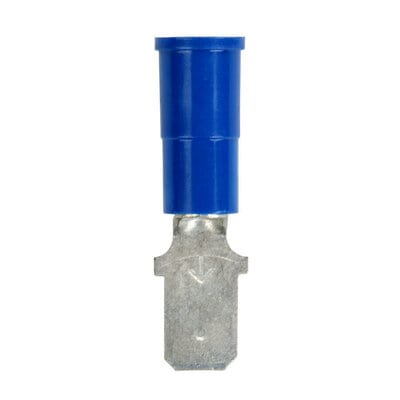

Scotchlok Male Disconnect Nylon Insulated
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Beveled mouth offers easy insertion of wires
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Wider tongue design for use on free-standing studs
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
3M Fork Terminal withstands a maximum temperature of 347 degrees F (175 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Male Disconnect Nylon Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 1.192 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.187 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.5 mm² |
| Barrel Inside Diameter | 0.080 Inch |
| Barrel Style | Insulation Grip |
| CSA File Number | LR22190 |
| Disconnect Type | Male |
| Fastener Orientation | Male |
| Insulation Material | Nylon |
| Male Tab Width (W') | 0.187 Inch |
| pa_maximum-insulation-outer-diameter-imperial | |
| Overall Length (Imperial) | 0.84 in |
| Pad Width | 0.187 in |
| Tab Width | 0.250 |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
| Units Per Case | |
| Dimensions | 9.4 × 3.6 × 5.1 in |
