Product Description

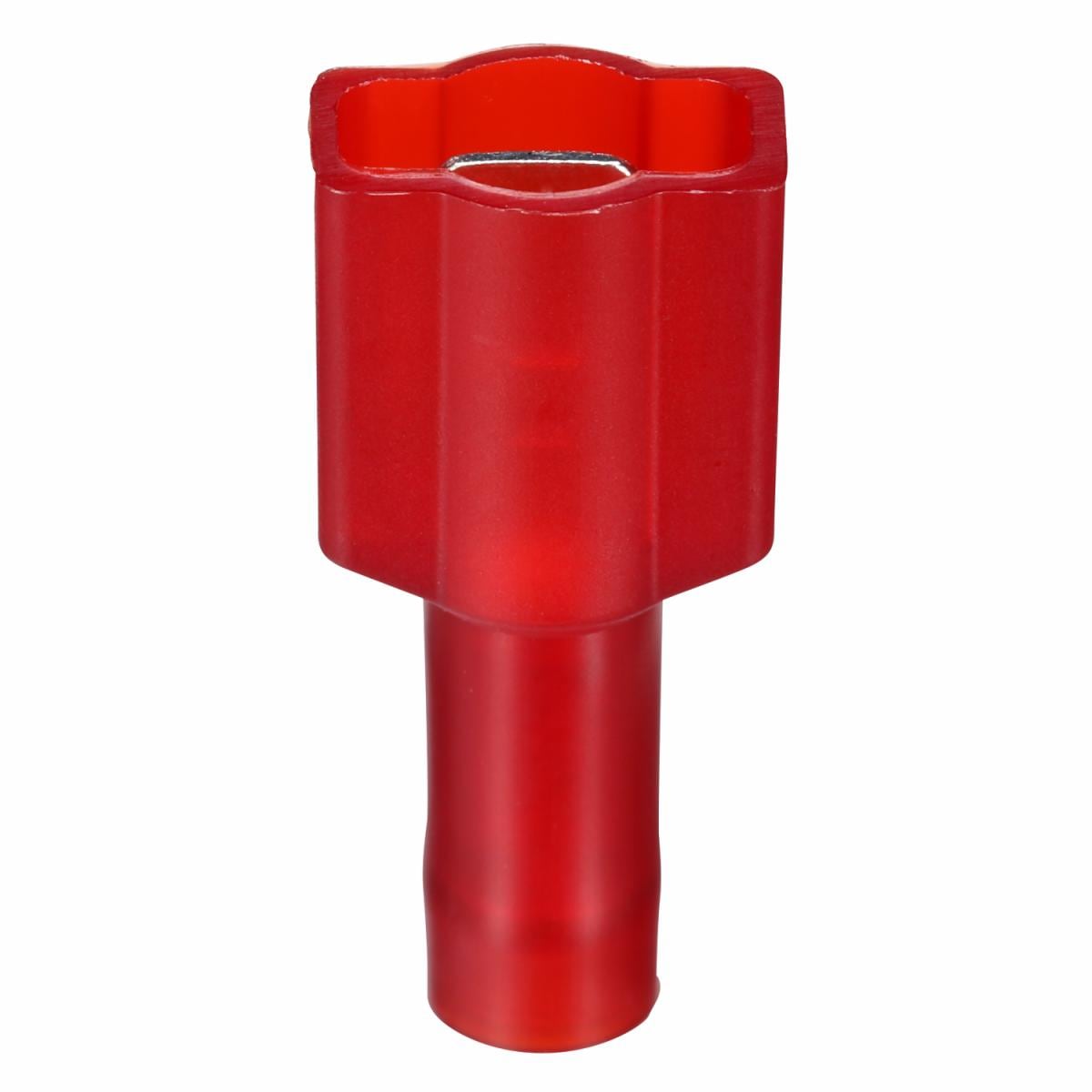

Scotchlok Male Disconnect
- Allows for quick and easy disconnect of wires
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- This male disconnect terminal offers excellent holding force
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Color-Coded Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. This terminal has a butted-seam barrel which is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The nylon-sleeve is abrasion-resistant, fully insulated and flared to allow a positive grip. Its stepped design ensures mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Male Disconnect, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 3.3 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.25 in |
| Maximum Conductor Size | 1 mm² |
| Minimum Conductor Size | .34 mm² |
| Barrel Inside Diameter | 0.145 Inch |
| Barrel Length (Imperial) | 0.25 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Diameter (D) | 0.3 Inch |
| Disconnect Type | Male |
| Fastener Orientation | Male |
| pa_grease-filling-against-corrosion | |
| Insulation Color | Red |
| Insulation Material | Nylon with Insulation Grip |
| Male Tab Width (W') | 0.25 Inch |
| Overall Diameter (Imperial) | 0.3 in |
| Overall Length (Imperial) | 0.95 in |
| Overall Width (Imperial) | 0.44 in |
| Pad Width | 0.25 in |
| Tab Width | 0.250 |
| Terminal Style | Fully Insulated |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
| Units Per Case | |
| Dimensions | 6.5 × 5.4 × 6.2 in |
