Product Description

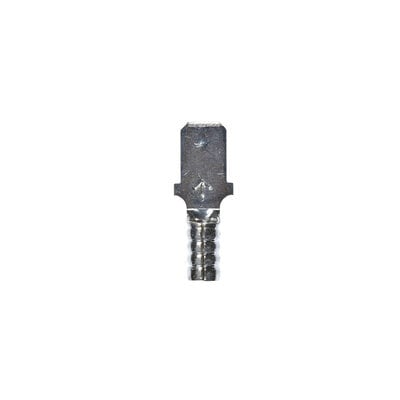

Scotchlok Male Disconnect
- Accommodates wire sizes 16 to 14 AWG
- Allows for quick and easy disconnect of wires
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
- This male disconnect terminal offers excellent holding force
3M Scotchlok Non-Insulated Butted Seam Male Disconnect terminal attaches to the mating part with a tongue that slips over the female tab. It has a non-insulated, butted-seam barrel and a beveled mouth to easily guide the wire into position. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Male Disconnect, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 0.971 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.187 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.5 mm² |
| Barrel Inside Diameter | 0.08 Inch |
| Barrel Length (Imperial) | 0.24 Inch |
| Barrel Style | Butted |
| Bullet Diameter | 0.180 |
| CSA File Number | LR22190 |
| Disconnect Type | Male |
| Fastener Orientation | Male |
| Insulation Material | Non-insulated |
| Male Tab Width (W') | 0.187 Inch |
| Overall Length (Imperial) | 0.64 in |
| Pad Width | 0.187 in |
| Solution for | Wireless Network: Infrastructure Accessories |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
| Units Per Case | |
| Dimensions | 5.1 × 4.6 × 3.1 in |
