Product Description

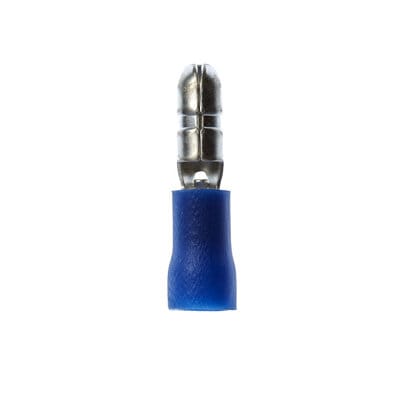

Scotchlok Male Disconnect
- 1000/case
- Accommodates wire sizes 22 to 18 AWG
- Allows for quick and easy disconnect of wires
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Mates with 0.156-in wide female tab
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- This male disconnect terminal offers excellent holding force
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Vinyl Insulated Butted Seam Bullet-Style Male Disconnect attaches to the mating part with a tongue that slips over the female tab. The snap plug has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. It has an abrasion-resistant, flared, vinyl-sleeve insulation which ensures easy crimping. RoHS 2011/65/EU Compliant.
For more information about Scotchlok Male Disconnect, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 2.666 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.156 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.5 mm² |
| Length | |
| Barrel Style | Butted |
| Disconnect Type | Male |
| Fastener Orientation | Male |
| Insulation Material | Vinyl |
| Mating Snap Diameter (S) | 0.156 Inch |
| pa_maximum-insulation-outer-diameter-imperial | |
| Pad Width | 0.156 in |
| Solution for | Wireless Network: Infrastructure Accessories |
| Tab Width | 0.250 |
| Terminal Style | Bullet Snap Plug |
| Terminal Type | Disconnect |
| Units Per Case | |
| Dimensions | 5.1 × 4.6 × 3.1 in |
