Product Description

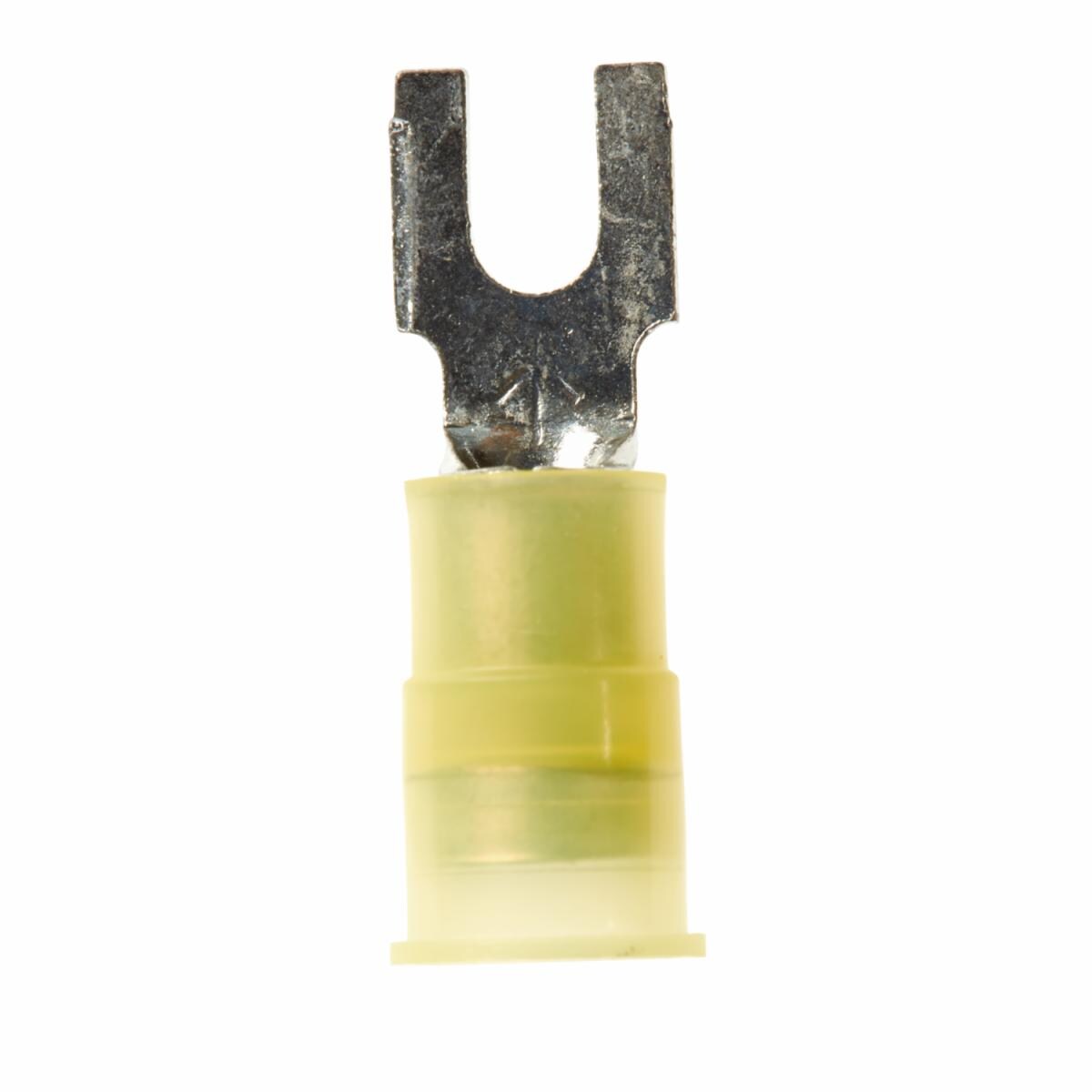

Scotchlok Nylon Insulated w/Insulation Grip Blo…
3M Scotchlok Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Nylon Insulated w/Insulation Grip Block Fork Terminal MNG10-6FBK, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 2.393 lbs |
| Make to Order | |
| Brand | |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Stud Diameter | 0.138 in |
| Barrel Inside Diameter | 0.135 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Clearance (C) | 0.29 Inch |
| Dimension E | 0.84 Inch |
| Fork Type | Block |
| Insulated | Yes |
| Insulation Material | Nylon with Insulation Grip |
| Material | |
| pa_maximum-insulation-outer-diameter-imperial | |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| Overall Length (Imperial) | 1.03 in |
| Stud Size | #6 |
| Terminal Style | Block |
| Terminal Type | Fork |
| Units Per Case | |
| Dimensions | 5.1 × 4.6 × 3.1 in |
