Product Description

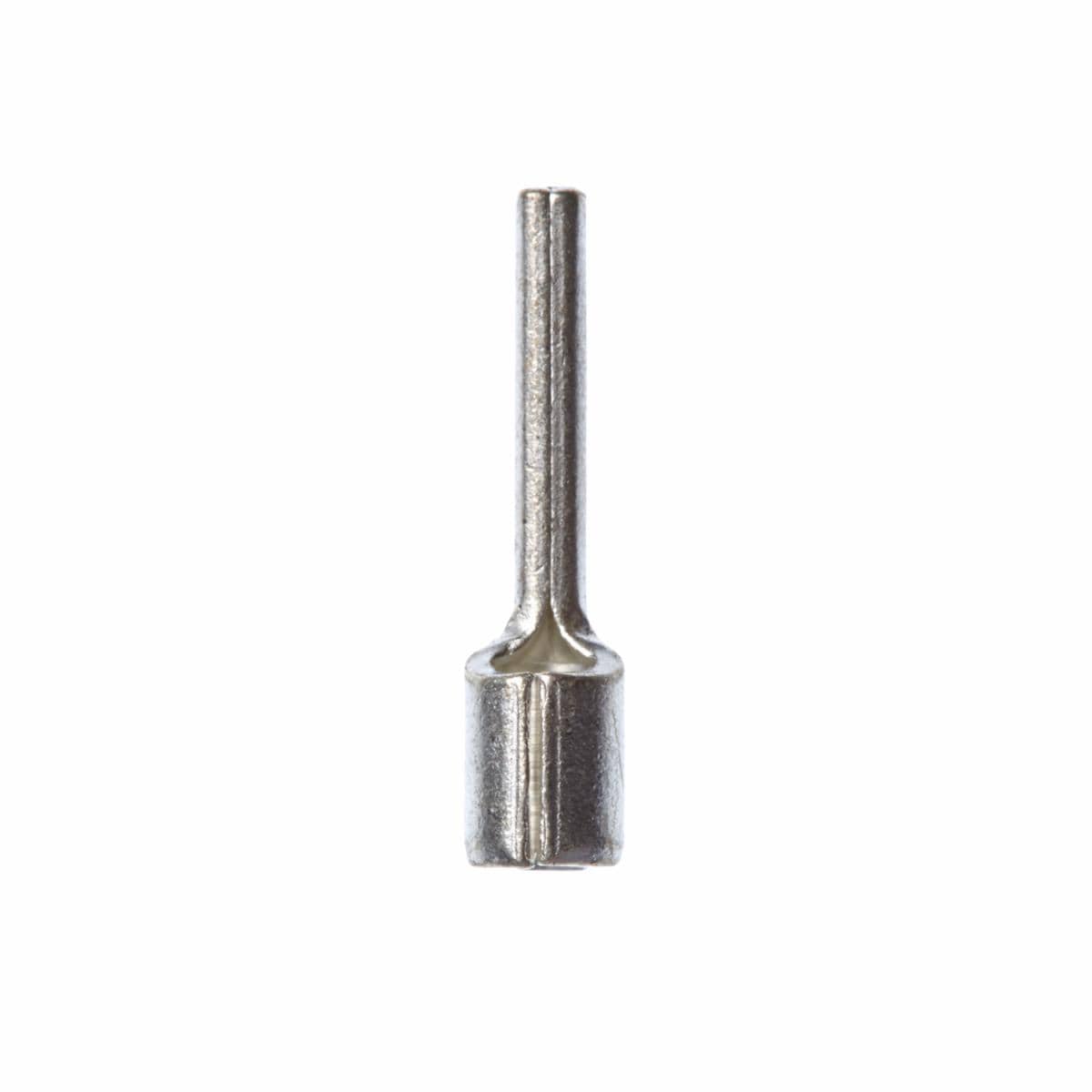

Scotchlok Pin Non-Insulated
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Beveled mouth offers easy insertion of wires
- Made of copper for good conductivity and has tin plating for corrosion resistance
- Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Provides quick connection for set screws or clamps that are used to make electrical contact
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
3M Scotchlok Non-Insulated Butted Seam Pin Terminal has a non-insulated, butted-seam barrel with a beveled mouth to guide the wire into position easily. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Pin Non-Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 2.373 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.08 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.5 mm² |
| Barrel Style | Butted |
| Insulation Material | Non-insulated |
| Overall Length (Imperial) | 0.73 in |
| Pin Length (PL) | 0.47 Inch |
| Terminal Type | Pin |
| Units Per Case | |
| Dimensions | 5.1 × 4.6 × 3.1 in |
