Product Description

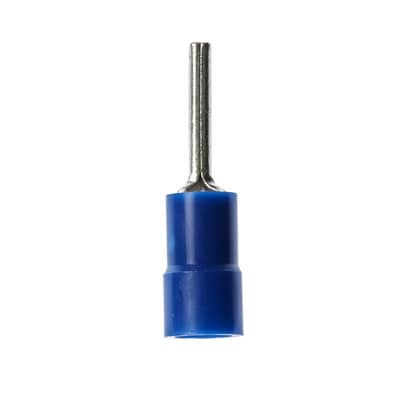

Scotchlok Pin Vinyl Insulated
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Made of copper for good conductivity and has tin plating for corrosion resistance
- Provides quick connection for set screws or clamps that are used to make electrical contact
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Withstands a maximum temperature of 167 degrees F (75 degrees C)
3M Pin Terminal is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Pin Vinyl Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 0.002 lbs |
| Brand | |
| Connection Width | 0.075 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.5 mm² |
| Length | |
| Barrel Inside Diameter | 0.090 Inch |
| Barrel Style | Butted |
| Diameter (D) | Pin Diameter 0.075 inch (1.91 mm) |
| Dimension E | Pin Length 0.47 inch (11.94 mm) |
| Insulation Material | Vinyl |
| pa_maximum-insulation-outer-diameter-imperial | |
| Pin Length (PL) | 0.47 Inch |
| Product Color | Blue |
| Solution for | Wireless Network: Infrastructure Accessories |
| Terminal Type | Pin |
| Units Per Case | |
| Dimensions | 1.6 × 3.1 × 4.3 in |
