Product Description
Scotchlok Ring Nylon Insulated
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Multi-stud style ring tongue fits around multiple stud sizes
- Stud size #6 to #10
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

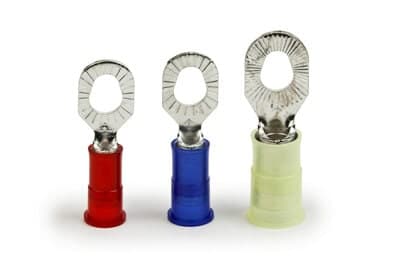

3M Scotchlok Multi-Stud Ring Tongue Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Ring Nylon Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 3.2 lbs |
| Make to Order | |
| Brand | |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Length | |
| Width | |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Insulation Material | Nylon |
| Material | |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_maximum-recommended-voltage-rating | |
| Maximum Voltage Rating | 600 to 1000 V |
| pa_operating-temperature-range-celsius | |
| pa_operating-temperature-range-fahrenheit | |
| Product Color | Yellow |
| Ring Type | Standard |
| Terminal Style | Multi-Stud |
| Terminal Type | Ring |
| UL File Number | E23438 |
| Dimensions | 9.3 × 6.7 × 5.1 in |
