Product Description

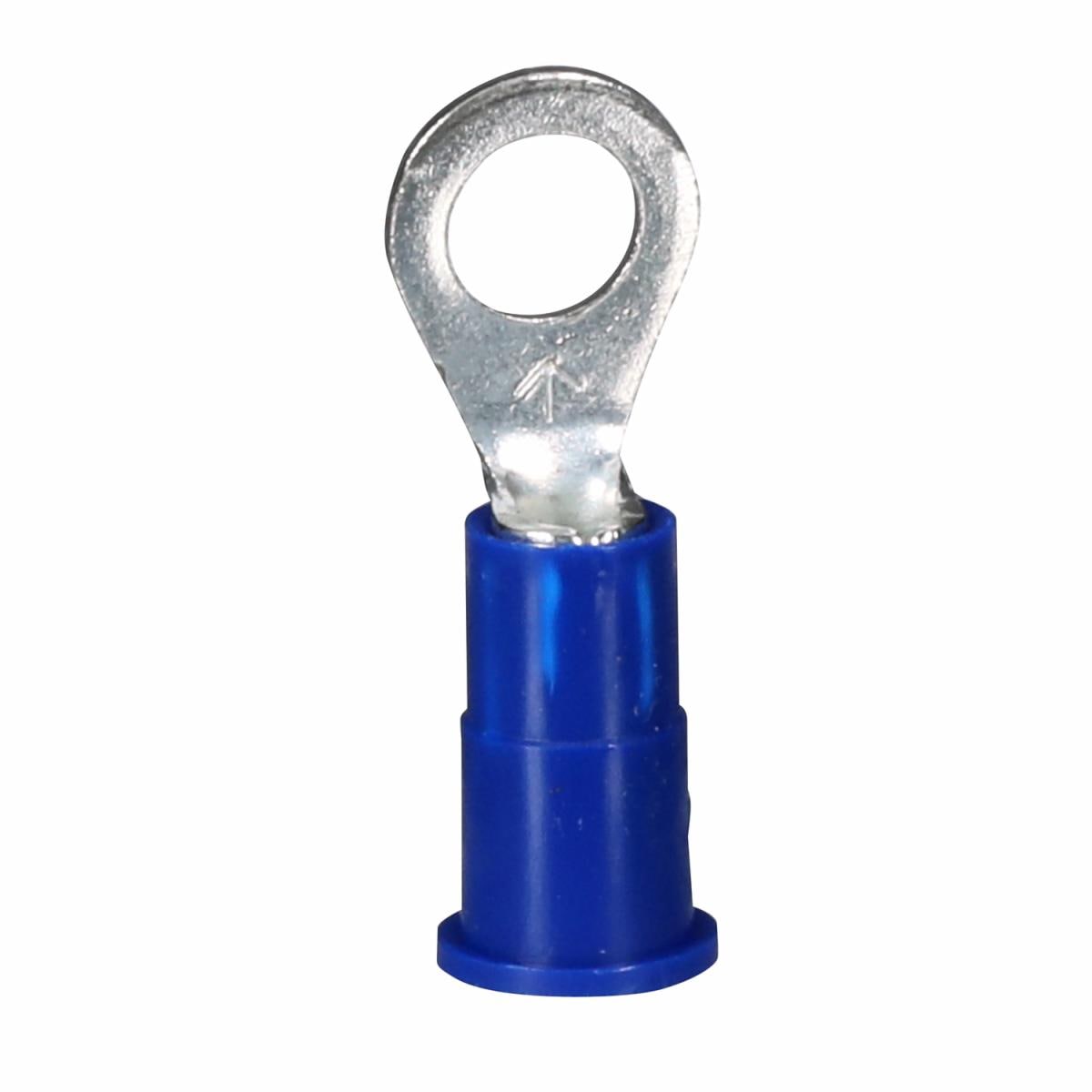

Scotchlok Ring Vinyl Insulated
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Standard-style ring tongue fits around the stud
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Ring Tongue Terminal is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Ring Vinyl Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 0.003 lbs |
| Brand | |
| Connection Width | 0.19 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.31 mm² |
| Length | |
| Width | |
| Connection Type | Crimp |
| Insulation Material | Vinyl |
| pa_maximum-operating-temperature-celsius | |
| Minimum Stud Diameter (Metric) | 5 mm |
| Product Color | Blue |
| Stud Sizes | #10 |
| Terminal Type | Ring |
| Dimensions | 1.6 × 3.1 × 4.3 in |
