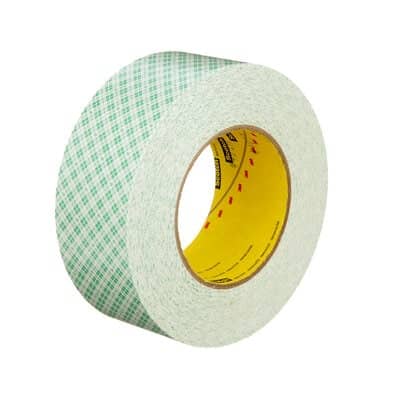

3M™ Double Coated Paper Tape 401M, Natural, 1 1/2 in x 36 yd, 9 mil

For Industrial Use Only. Estimated Lead Time For This Non-Returnable MAKE TO ORDER Item Is 5 Working Days.

3M™ Double Coated Paper Tape 401M is a hand-tearable double coated tape with a natural rubber adhesive system designed to offer excellent adhesion to many types of substrates. The adhesive is mounted on a paper carrier treated to provide increased strength and removability characteristics from high internal strength surfaces. More Info

Manufacturer:
3M
Selling Unit:
Case
Part #:
3MT-91713
Min. Order Quantity:
1
UPC:
051111917138
Min. Order Increment:
1
3M Stock #:
7010312983

3M™ Double Coated Paper Tape 401M, Natural, 1 1/2 in x 36 yd, 9 mil is available for purchase in increments of 1

24 rolls per case ($48.25 per piece)

Price:

$1,158.00

Product Description

Advantages of 3M™ Double Coated Paper Tape 401M

  • 9 mil double coated paper tape of natural rubber adhesive with a paper release liner
  • 3M™ Adhesive 860 offers high initial adhesion to a variety of substrates
  • Heavy paper carrier is treated to improve strength and provide dimensional stability
  • Double coated tape is ideal for temporary attaching or fixturing
  • Solvent-free manufacturing process helps meet environmental best practices goals

3M™ Double Coated Paper Tape 401M is a hand-tearable double coated tape with a natural rubber adhesive system designed to offer excellent adhesion to many types of substrates. 3M mounts the adhesive on a paper carrier treated to provide increased strength and removability characteristics from high internal strength surfaces.

3M™ Double Coated Paper Tape 401M is a hand-tearable double coated paper tape featuring 3M™ Adhesive 860 and mounted on a paper liner. This robust 54 lb. densified kraft paper release liner is green and white plaid for easy identification and adds dimensional stability to the tape during processes such as die-cutting and automated dispensing. It allows for easy deployment, helps reduce edge roll and protects the tape from humidity extremes. Made with a solvent-free manufacturing process, this tape can also help meet environmental best practices and goals.

Enduring Bond
3M™ Adhesive 860 is a soft, rubber resin, pressure sensitive adhesive system. It provides high initial adhesion and good holding power to a wide variety of materials. This adhesive is ideal for initial application indoors and at room temperature applications, but when properly applied it then performs under a wide range of temperatures from -40°F / -40°C up to 150°F / 65°C. It also offers short term heat resistance up to 200°F / 93°C.

Recommended Applications

  • Mounting rubber or photopolymer printing plates
  • Splicing and core starting of papers, foils, films and fabrics
  • Attaching golf club grips
  • Temporary holding while you finish other parts in the milling process

Additional information

Weight 18.4296 lbs
Restriction

Unit of Measure

Part Number

Adhesion To Foam

Adhesion To Hse

Adhesion To Lse

Adhesion To Metal

Adhesive Peel Initial

Adhesive Peel Ultimate

Backside Adhesive Thickness (mils)

Backside Adhesive Type

Carrier Color

Carrier Material

Chemical Resistance

Faceside Adhseive Thickness (mils)

Faceside Adhseive Type

Humidty Resistance

Color

Length

Thickness

Width

Master Size Width

Maximum Operating Temperature (fahrenheit)

Maxmum Operating Temperature (celsius)

Minimum Operating Temperature (fahrenheit)

Moisture Resistance

Nominal Adhesive Thickness (mils)

Plasticizer Resistance

Primary Liner

Primary Liner Color

Primary Liner Thicknes (mils)

Shear Strength At 72 Degrees F

Solvent Resistance

UPC

Uv Resistance

Per Case

Product Id

Make to Order

Data Sheets

Technical Data Sheets
