Product Description

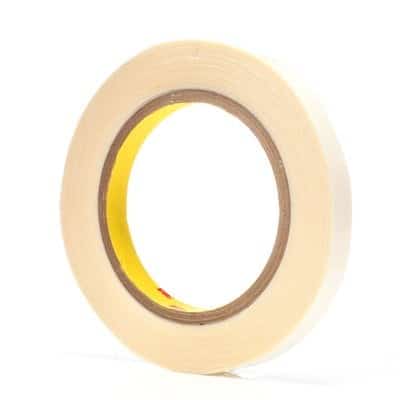

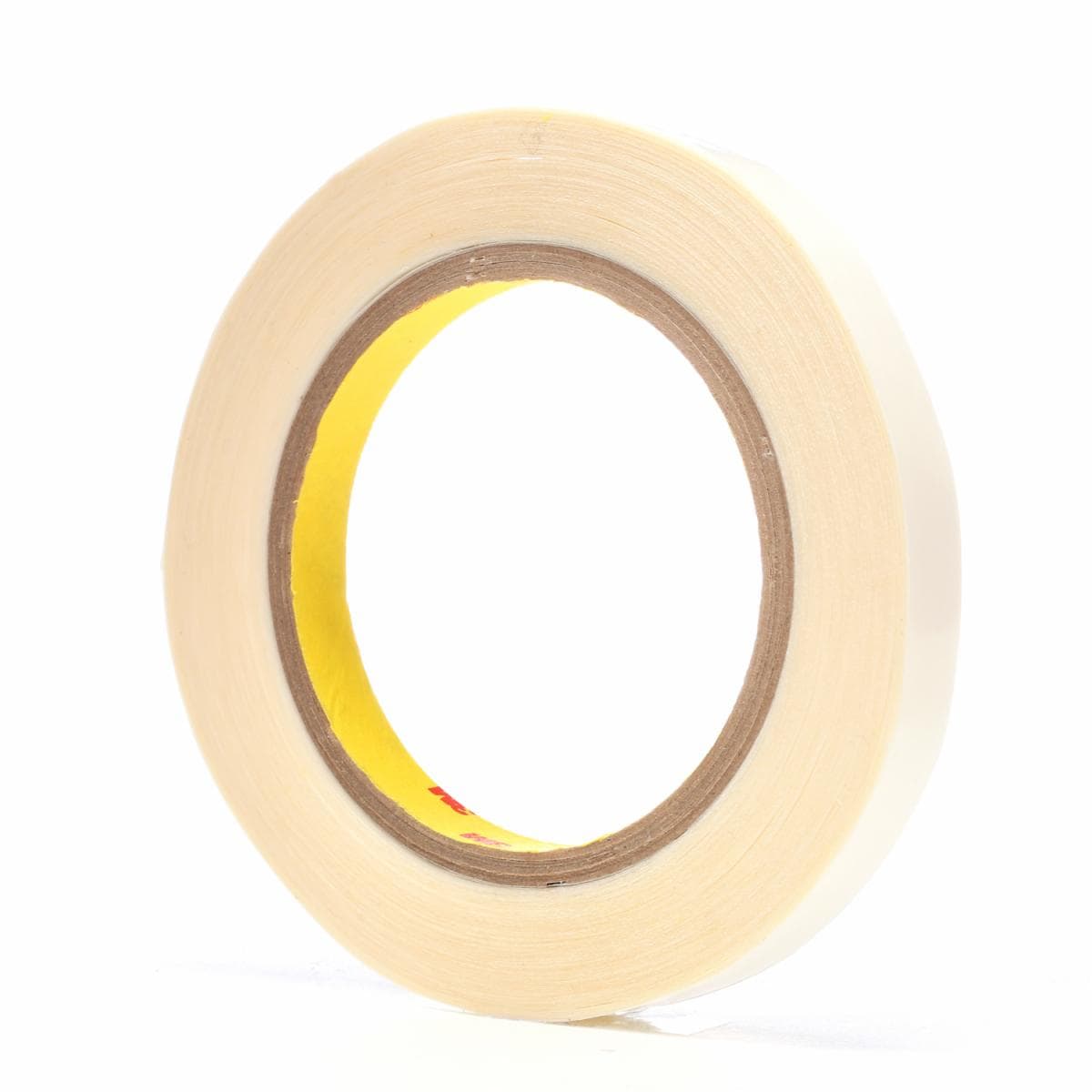

Advantages of 3M™ Double Coated Tape 444
- Excellent for foam and gasket attachment, HSE and LSE plastics such as polyethylene
- Quick flowing adhesive delivers high initial adhesion for faster lamination
- 0.5 mil PET film carrier adds dimensional stability and easier handling during slitting and die-cutting
- 3M™ Adhesive 300 aggressively bonds to many surfaces, including plastics like polyethylene
- 55# 3.2 mil densified kraft liner makes for easy release
3M™ Double Coated Tape 444 features 3M™ Adhesive 300, a medium-firm acrylic adhesive ideal for joining materials that are smooth, thin and have low residual stress. It is excellent for foams and LSE plastics such as polyethylene, as well as HSE plastics. Adhesive is applied to both sides of a 0.5 mil PET film which adds structural stability. This tape features a 55# densified kraft liner.
A Double Coated Tape for Foams and LSE Plastics
Excellent for textured plastics, foams, fabrics and coated papers, 3M™ Double Coated Tape 444 features 3M™ Adhesive 300 on a 0.5 mil polyester (PET) film carrier. The medium-firm acrylic adhesive delivers high initial and final adhesion for efficient laminating procedures. The durable polyester film carrier between the adhesive layers improves the handling and strength of the tape, and adds stability during processes such as die-cutting and slitting. The adhesive is applied at 1.4 mils on the liner side and 2 mils on the face side for effective wet-out. The 55# densified kraft paper release liner makes for fast, efficient application.
About 3M™ Adhesive 300
3M™ Adhesive 300 is a medium-firm acrylic adhesive system featuring both high initial adhesion and good UV and chemical resistance and strong holding power. The design of the adhesive results in high initial adhesion and good temperature performance. The formulation gives 3M™ Adhesive 300 a consistently strong bond across a range of temperatures up to 250°F/121°C short term.
3M™ offers a wide variety of tapes for all of your needs. Consider our double coated polyethylene foam tape which excels on irregular surfaces.
Recommended Applications:
- Medical diagnostic test strips
- Plastic film lamination/bonding
- Splicing
- Foam lamination
- Gasket attachment
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, Ohio, JAM Industrial Supply, LLC has been a 3M Strategic Distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery, and prices to our customers.
Additional information
Weight | 16.848 lbs |
---|---|
Faceside Adhseive Thickness (mils) | |
Faceside Adhseive Type | |
Maximum Operating Temperature (fahrenheit) | |
Maxmum Operating Temperature (celsius) | |
Minimum Operating Temperature (fahrenheit) | |
Nominal Tape Thickness (mils) W/o Liner | |
Primary Liner | |
Primary Liner Color | |
Primary Liner Thicknes (mils) | |
Secondary Liner Thickness (mils) | |
Total Thickness With Liner | |
Uv Resistance | |
Unit of Measure | |
Per Case | |
Size | |
Previous 3M Stock Number |
