Product Description

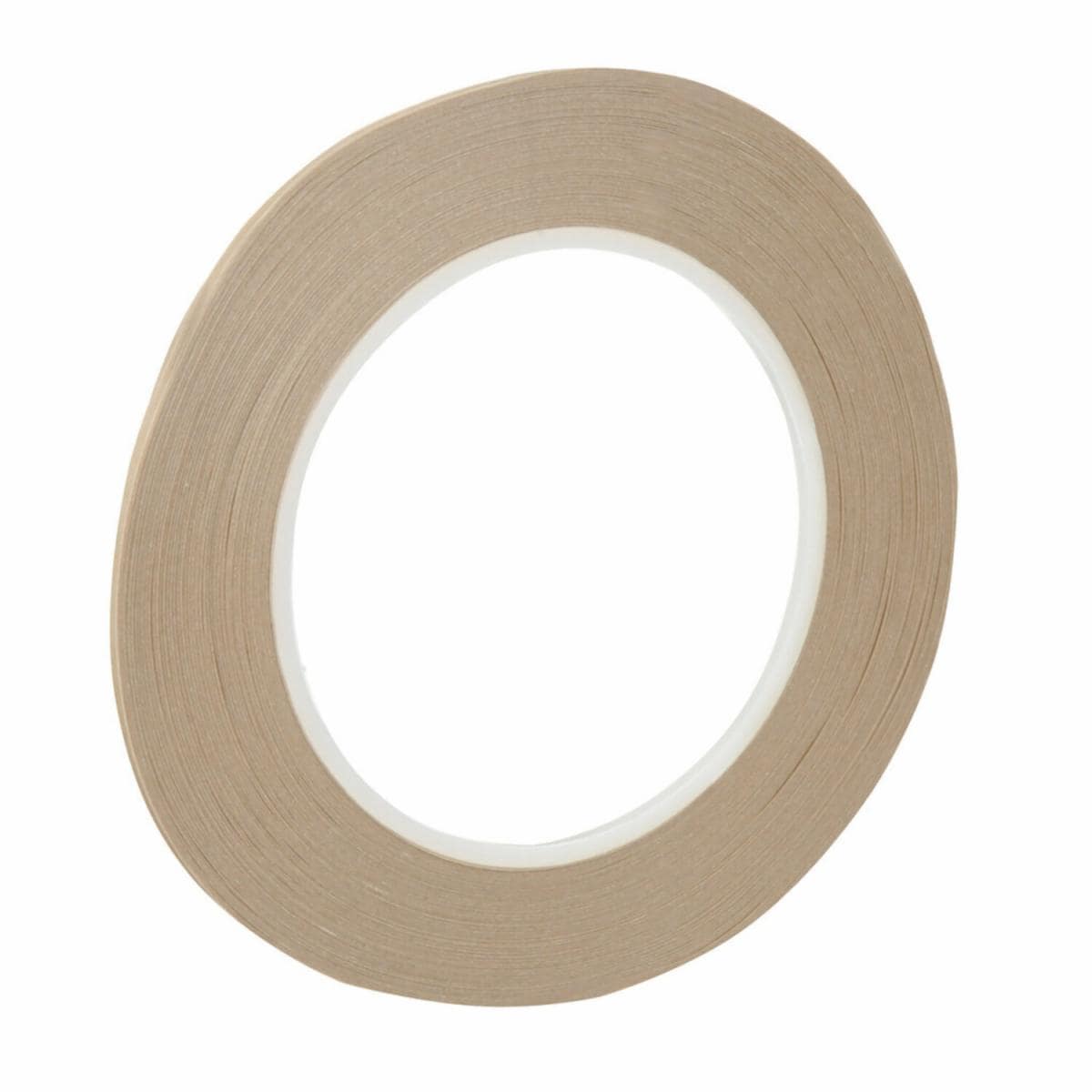

Anisotropic Conductive Film Adhesive 7303
- Frozen storage
- Good thermal stability
- Heat cure
- Reworkable
- Tacky at room temperature
- Thermo-set low temperature cure
The unbonded film is slightly tacky at room temperature and consists of a thermoset-elastomer and thermoplastic adhesive matrix randomly loaded with conductive particles. These particles allow interconnection of circuit lines through the adhesive thickness, but are spaced far enough apart for the product to be electrically insulating in the plane of the adhesive. Soft conductive particles are preferred when bonding to fragile substrates such as ITO on glass, as they deform against hard surfaces, but may also be used for other substrate types. 3M ACF 7379 may be used to bond a flexible printed circuit to glass-based devices such as displays or to another flexible printed circuit. Standard Lead Time: 14 Calendar Days
For more information about Anisotropic Conductive Film Adhesive 7303, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 5.294 lbs |
| Make to Order | |
| Brand | |
| Nominal Adhesive Thickness | 2.9 mil |
| Length | |
| Thickness | |
| Width | |
| Primary Liner Thickness | 100 μm |
| Secondary Liner Thickness | 2.9 mil |
| Adhesive Type | |
| Application | Lightweighting, Bonding |
| Curing Temperature (Celsius) | 140 Degree Celsius |
| pa_curing-temperature-fahrenheit | |
| Industries | General Industrial, Transportation, Electronics |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_minimum-operating-temperature-celsius | |
| pa_minimum-operating-temperature-fahrenheit | |
| Product Color | Tan |
| Product Form | Roll |
| Product Usage | Consumer Electronics, Electronic Components, Displays |
| Shear Strength | 7.1 psi |
| Shelf Life | |
| Storage Environment | Dry Storage |
| Storage Temperature (Celsius) | 5 °C – 25 °C |
| pa_storage-temperature-fahrenheit | |
| Substrate | Glass |
| Dimensions | 23.3 × 23 × 19.1 in |
