Product Description

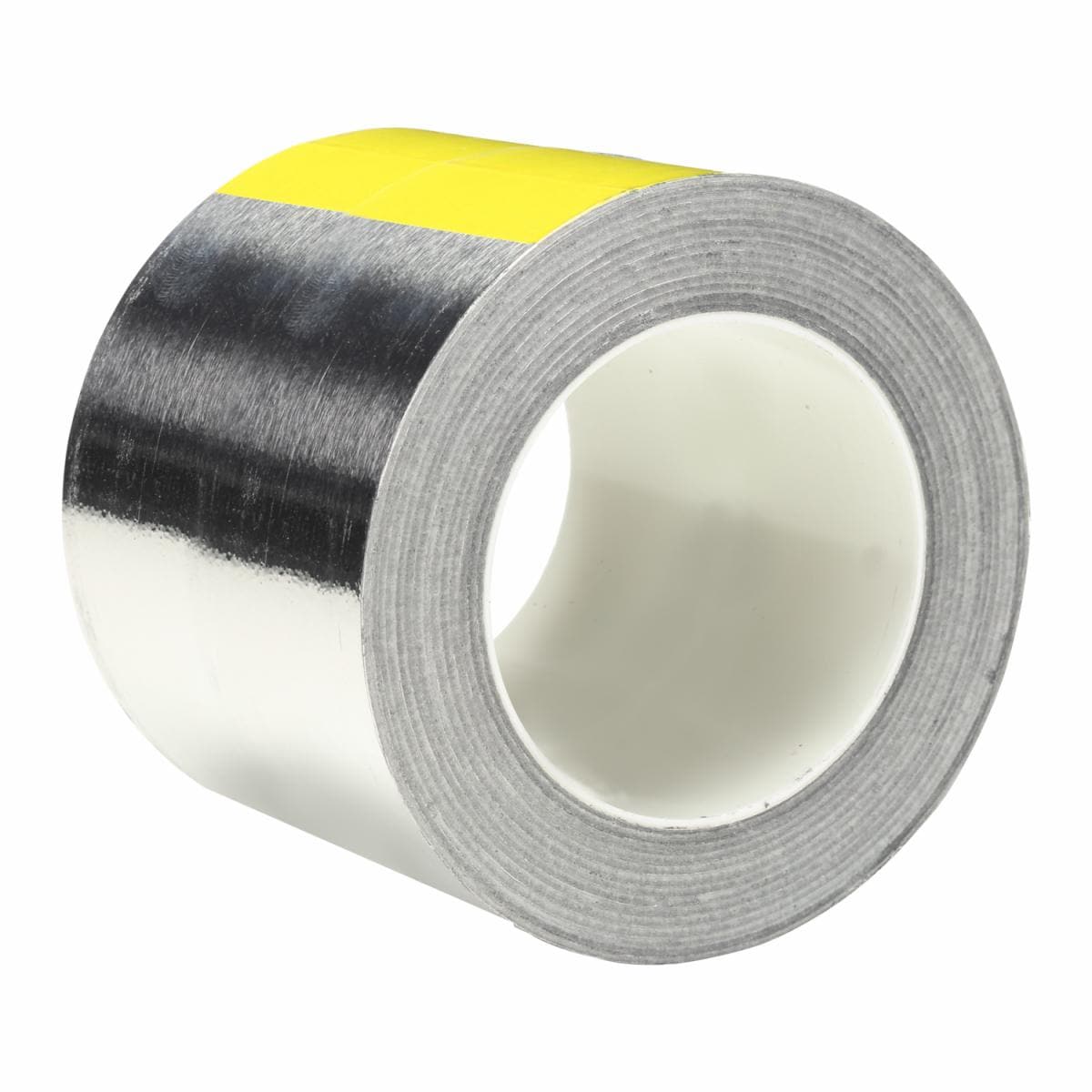

Conductive Aluminum Foil Tape 3302
- Acrylic adhesive features good "wetting out" capabilities to all surfaces
- Aluminum foil backing works well for EMI/RFI shielding applications
- Bonds extremely well to low surface energy materials and difficult textured surfaces
- High strength aluminum foil backing is durable and malleable to conform to uneven or irregular surfaces
- Performs continuously over an extremely wide temperature range from 0°F/-18°C to 225°F/107°C
High Strength Aluminum Foil Tape 3M Conductive Aluminum Foil Tape 3302 is a 2 mil aluminum foil backed tape consisting of a high strength, dead soft aluminum foil backing and a conductive acrylic adhesive. This tape resists flame, moisture, weather, UV degradation and many chemicals. It is a thermally conductive tape ideal for heating and cooling efficiency. It helps reflect heat and light and is malleable to conform to irregular or uneven surfaces. This tape is a durable option for conductive applications and EMI and RFI shielding applications in the electronics industry. A wide temperature range (from 0°F/-18°C to 225°F/107°C) allows this tape to be used in a variety of low and high temperature applications.
Suggested Applications • Printed circuit manufacture and repair • Shielding applications in the electronics industry • Low level EMI and RFI shielding applications Conductive Adhesive that “Wets Out” 3M Conductive Aluminum Foil Tape 3302 is coated with an aggressive conductive acrylic adhesive system that bonds well to a diverse selection of materials, including low surface energy materials and those with difficult textures. It has good “wetting out” capabilities to all surfaces. This tape is mounted on a glassing paper release liner to help preserve the adhesive prior to adhesion and assist in the application of the tape. Once bonded, this tape provides a thermally conductive bond that is ideal for heating and cooling efficiency.
For more information about Conductive Aluminum Foil Tape 3302, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 4.8 lbs |
| Brand | |
| Backing (Carrier) Thickness | 0.05 mm |
| Length | |
| Width | |
| Tensile Strength | |
| pa_total-tape-thickness-without-liner | |
| Adhesive Type | |
| pa_back-side-adhesive-thickness-metric | |
| Backing Material | |
| Elongation at Break | 3% |
| Industries | Military & Government, Transportation, Construction, Specialty Vehicles, Automotive, Electronics, General Industrial, Aerospace, Metalworking |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_minimum-operating-temperature-celsius | |
| pa_minimum-operating-temperature-fahrenheit | |
| Primary Liner | |
| Product Color | Silver |
| Specifications Met | UL 510 |
| Units Per Case | |
| Dimensions | 8.4 × 8.4 × 8.7 in |
