Product Description
Double Coated Tape 9741
- Bonds well to most substrates, including low surface energy films
- Conformable to bond to irregular surfaces
- Double sided adhesion increases dimensional stability for easy handling
- Excellent UV and heat resistance withstands a variety of conditions
- High tack for flying splices
- Red option available for visible splicing applications
- Ultra-high peel strength and excellent shear strength to withstand rigorous splicing applications

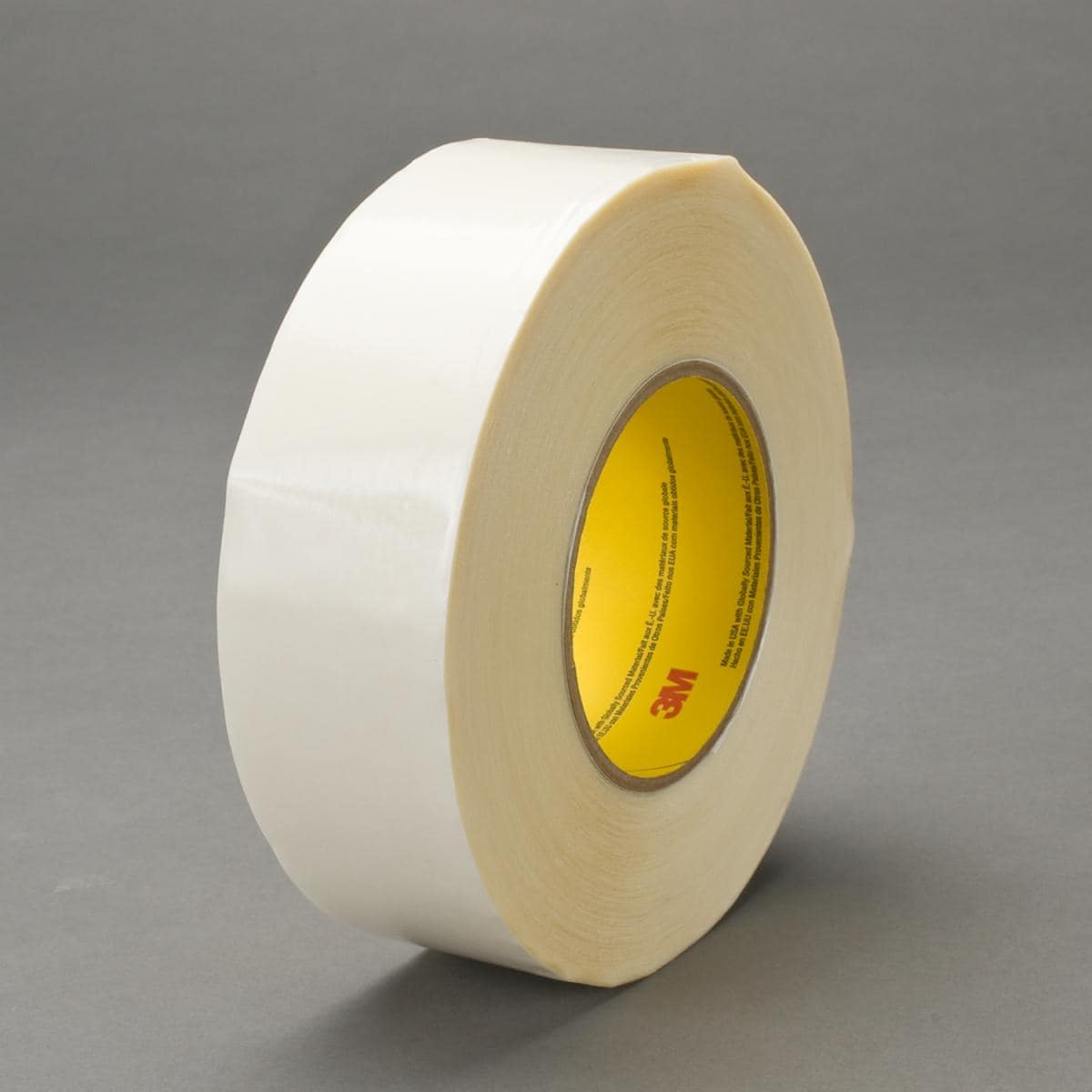

Thick and Versatile 3M Double Coated Tape 9741 is a 6.5 mil double-sided tape utilizing a 0.5 mil hand-tearable polyester film carrier lined on both sides with acrylic adhesive. It has a high coat weight and adheres well to low surface energy substrates. This product provides excellent UV and heat resistance, and can perform under a wide temperature range (-40°F/-40°C to 200°F/93°C). Once bonded, this tape provides excellent peel and shear strength – making it ideal for rigorous splicing applications and bonding plastics to metals. 3M Double Coated Tape 9741 is mounted on a 55# glassine backing to enable ease of deployment. Notably, this product is offered in two colors – clear and red.
The red version can be used for visible splicing applications. Recommended Applications • High speed splicing applications • Applications where adhesion to low surface energy substrates is needed • Bonding decorative trim, plastics and metal profile extrusions • Attachment to irregular surfaces • Seaming of vinyl banners • Universal all-purpose bonding applications common to double coated tapes Aggressive Adhesion 3M Double Coated Tape 9741 is coated on both sides with an aggressive, pressure sensitive acrylic adhesive. This bonding agent provides an ultra-high peel acrylic adhesive system that bonds well to most substrates, including low surface energy plastics. It provides superior bonding and conformability to irregular as well as flat surfaces. It will withstand a wide range of temperatures and applications. What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in web processing, construction, fabrication, arts and hobby industries, among others.
For more information about Double Coated Tape 9741, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 39.031 lbs |
| Brand | |
| Backing (Carrier) Thickness | 0.013 mm |
| Length | |
| Width | |
| pa_total-tape-thickness-without-liner | |
| Adhesive Type | |
| Application | Zero-Speed and General Splicing |
| Backing (Carrier) Material | Polyester Film |
| Carrier Material | |
| Carrier Thickness | 0.5 mil |
| Carrier Thickness (Metric) | 0.013 mm |
| Face Side Adhesive Type | Acrylic |
| Industries | Specialty Vehicles, Transportation, Appliance, Electronics, Automotive, General Industrial, Medical |
| pa_maximum-operating-temperature-fahrenheit | |
| Primary Liner | |
| Primary Liner Color | |
| Product Color | Transparent |
| Product Form | Roll |
| Tape Type | |
| Units Per Case | |
| Dimensions | 13.9 × 13.9 × 12.8 in |
