Product Description

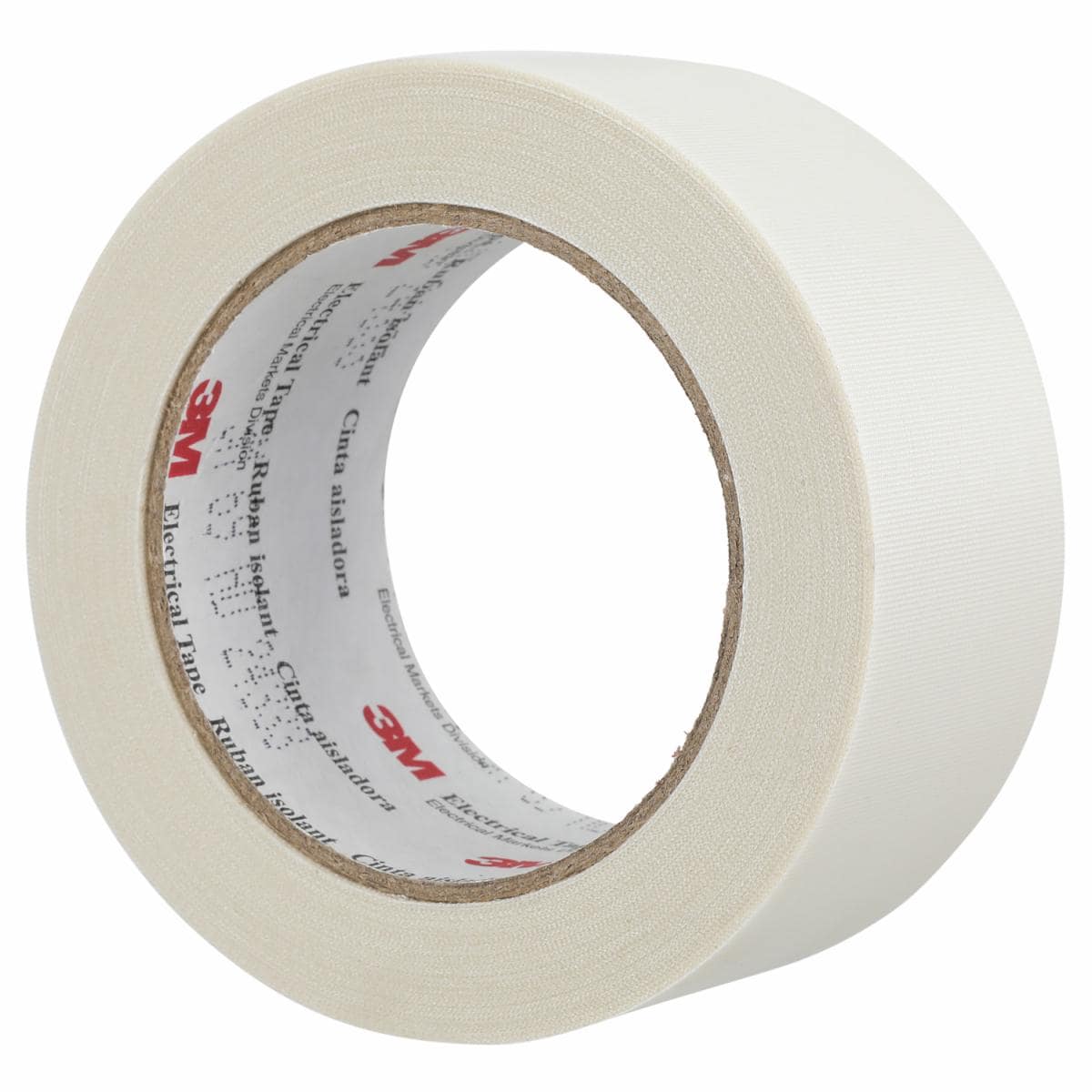

Glass Cloth Electrical Tape 69
- 5 year shelf-life when stored per 3M recommended conditions
- Nominal thickness: 0.178 mm (7.0 mil)
- Pressure-sensitive silicone adhesive with glass cloth backing
- Printable
- RoHS Compliant and QPL Listed – QPL-19166 pre MIL-I-19166
- UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings
- UL Recognized flame retardant
3M Glass Cloth Electrical Tape 69 features a pressure sensitive, high temperature, thermosetting, silicone adhesive. It is commonly used in UL applications rated up to 600 volts in dry locations and in a variety of coil/transformer and motor applications including as an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold-down, end turns and lead anchor and connections. UL recognized and 200°C (392°F) temperature rated. CSA certified and 180°C (356°F) temperature rated. RoHS Compliant and QPL Listed – QPL-19166 pre MIL-I-19166
For more information about Glass Cloth Electrical Tape 69, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 14.3 lbs |
| Brand | |
| Length | |
| Width | |
| pa_total-tape-thickness-without-liner | |
| Adhesive Type | |
| Application | Insulation |
| Backing (Carrier) Material | Glass Cloth |
| Dielectric Strength | |
| pa_electrolytic-corrosion-factor | |
| Insulation Resistance | 4.8 x 10^4 megohms |
| Product Color | White |
| Shelf Life | |
| Specifications Met | RoHS 2011/65/EU, CSA, UL Recognized |
| Tape Grade | |
| Dimensions | 14.2 × 13.8 × 7.6 in |
