Product Description

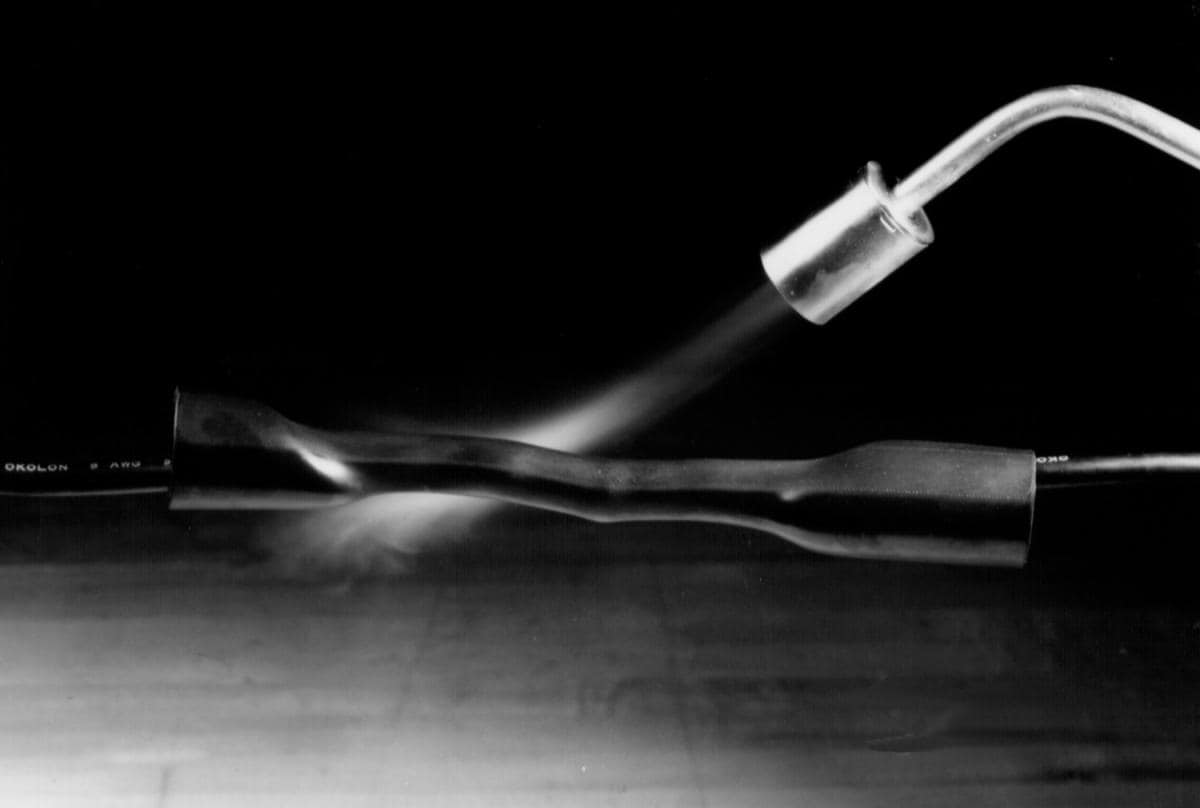

Heat Shrink Multiple-Wall
- Made of black semi-rigid polyolefin
- Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
- Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
- Provides the advantage of integral, adhesive-lined construction
- Rated for 600V applications
- Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
3M Heat Shrink Tubing MW is color coded for quick and easy identification of the wire. It provides a skintight fit and strain relief sealing of electrical connections, wire splices and components. This heat shrinkable tubing is co extruded and cross linked to offer a meltable inner wall. When the tubing cools down, it forms an insulating barrier to chemicals and solvents. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, SAE SAE AS23053/4, Class 1, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Heat Shrink Multiple-Wall, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 6.8 lbs |
| Brand | |
| Inner Diameter After Shrink | 0.4 in |
| Inner Diameter Before Shrink | 1 in |
| Flame Retardant | |
| Heat Shrink Type | Adhesive-Lined Polyolefin Heat Shrink Tubing |
| Material | |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| Minimum Expanded Tubing I. D. | 1 in |
| Non-Corrosive | Yes |
| pa_operating-temperature-celsius | |
| pa_operating-temperature-fahrenheit | |
| Overall Length (Imperial) | 48 in |
| Product Color | Black |
| Shrink Ratio | 2.5:1 |
| Tubing Type | Dual Wall (Adhesive Lined) |
| UL File Number | E-157227 |
| Dimensions | 51 × 6.4 × 6.5 in |
