Product Description

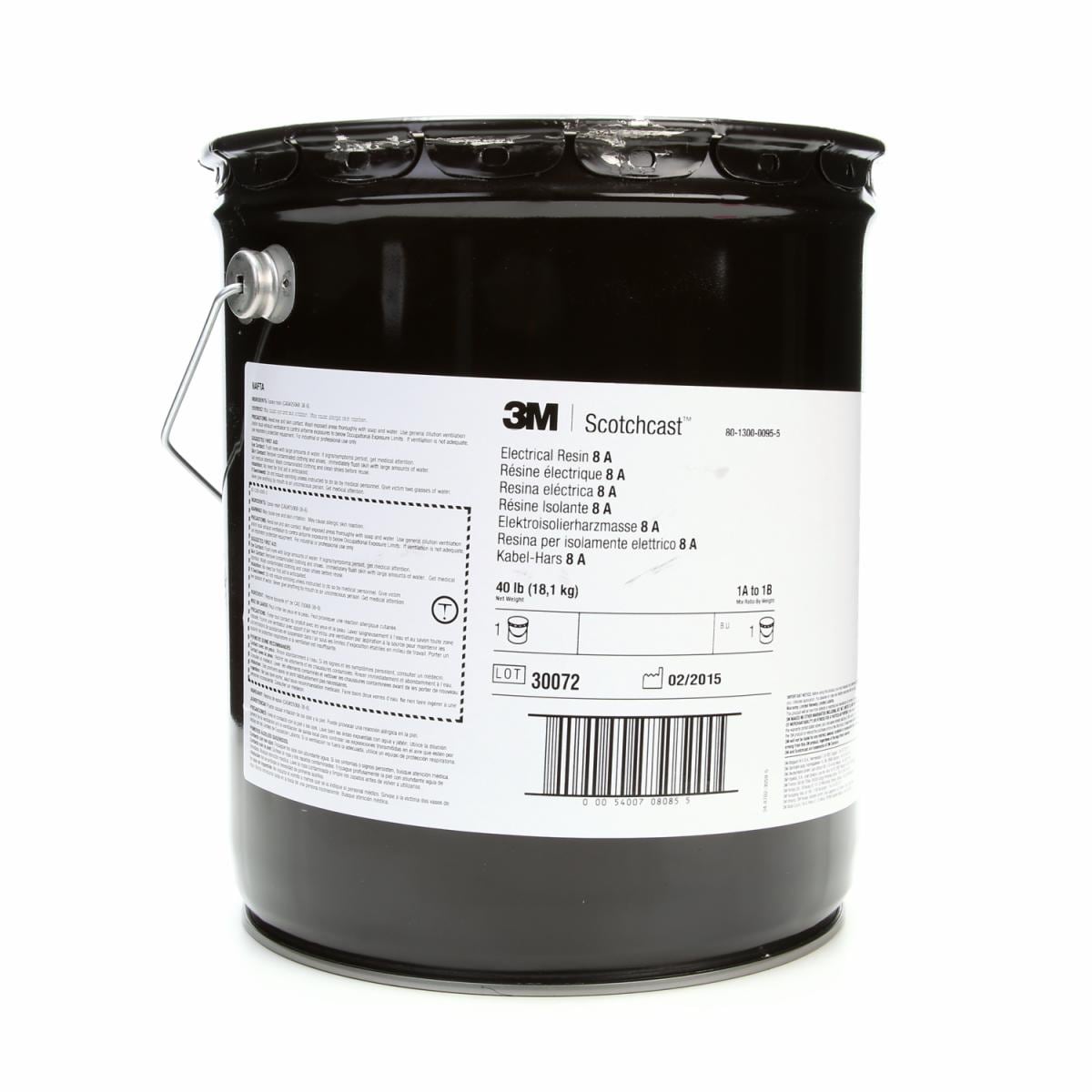

Scotchcast Electrical Resin 8 Part A (18.1 kg)
- 30 minute gel time at 60° C (140° F)
- 68 Shore D hardness
- Ideal for applications that need excellent thermal shock and mechanical shock resistance
- Moisture resistant
- Temperature rated Class B (130˚C)
- Useful for coating coils, transformers, motors, modules, electrical and electronic components
3M Scotchcast Electrical Resin 8 has a low gel point rating to ensure curing at room temperature. The high-tensile strength of the resin exhibits a semi-flexible and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. The high dielectric strength offers excellent electrical insulating property to the resin. It has a high flash point, helping prevent any fire hazard in electrical components due to quick ignition. Since the resin exhibits a hydrolytic stability property, it minimizes quick chemical decomposition, thus providing long-lasting usage. RoHS Compliant.
For more information about Scotchcast Electrical Resin 8 Part A (18.1 kg), visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 47.4 lbs |
| Make to Order | |
| Brand | |
| Base Polymer | Epoxy |
| Cure Method | Room |
| Cure Temperature | ~23 Degree Celsius |
| Dielectric Strength (V/mil) | 325 V/mil |
| Elongation | |
| Flame Retardant | |
| Flammability Rating | Not Self Extinguishing |
| Flexibility | Semi-flexible |
| Hardness | |
| Material | |
| pa_maximum-operating-temperature-celsius | |
| Mining Sector Approval | No |
| Mix Ratio | |
| Mixed Viscosity | Low (<10,000 cpi) |
| Product Type | Electrical Resin |
| Resin Cure | Room Cure Unfilled Resins |
| Storage Time in Months | 24 |
| Temperature Rating | Class B (<=130 deg C) |
| Tensile Strength (Imperial) | 1700 psi |
| Dimensions | 13.1 × 13.1 × 15.4 in |
